AI Food Identification, Calorie Estimation, and Meal Intelligence for a Premium Nutrition Coaching App

Industry

Beauty, Wellness & Personal Care

Geography

North Carolina, United States

Cooperation Period

1.2 years

Our client operates a premium subscription macro tracking and nutrition coaching app in the United States market, built by an evidence based fitness science company. Subscribers on the platform expect rigorous nutrition data, fast logging workflows, and coaching recommendations that adapt to real world behavior rather than to perfect log adherence.

Our team was engaged as an AI product engineering partner to contribute the intelligence layer for the app’s food logging and meal intelligence capabilities. The scope covered AI food identification, AI calorie counter flows, ingredient level meal decomposition, the editable AI logging workflow, AI recipe and meal parsing, AI label and custom food support, and the meal intelligence groundwork that supports future meal planning, meal suggestions, recurring meals, and macro aware planning workflows. Working alongside the client’s product, coaching, and data teams, the AI capability helped reduce complex meal logging time by more than 70 percent and reached 87 percent food identification accuracy across the full meal surface distribution.

About the Client

The client operates a premium subscription macro tracking and nutrition coaching app, built by a data driven nutrition science company, under a paid subscription model with no advertising, differentiating from the ad supported and freemium calorie trackers that dominate the consumer app store category. Subscribers are predominantly fitness focused adults tracking calorie and macro targets against specific body composition goals across cutting, bulking, maintenance, and recomposition. The platform’s core differentiator is the adaptive coaching engine that recalculates weekly targets using logged intake and weight trend data. The product surface covers barcode and search based food logging, coached, collaborative, and manual macro planning modes, weekly check ins, and reporting across weight trend, expenditure, energy balance, micronutrient coverage, habit tracking, period tracking, step counts, body measurements, and progress photos.

Business Challenge

The client’s product team identified a specific retention problem in the existing logging workflow. Subscribers logged branded packaged products through barcode scan and database search in under 10 seconds per item, with the barcode path resolving against EAN-13 and GS1 GTIN codes reconciled to the client’s verified database. Restaurant meals, mixed home plates, and homemade recipes routinely took over 90 seconds per meal. Meals skipped for time or complexity broke the adaptive coaching engine’s ability to trust the log, and the retention data made clear that manual logging friction on complex meals was the single largest reason paid subscribers churned in the first 30 days. An accurate AI calorie counter that could handle the meal types manual logging failed on became the retention lever the product team wanted to add to the existing app.

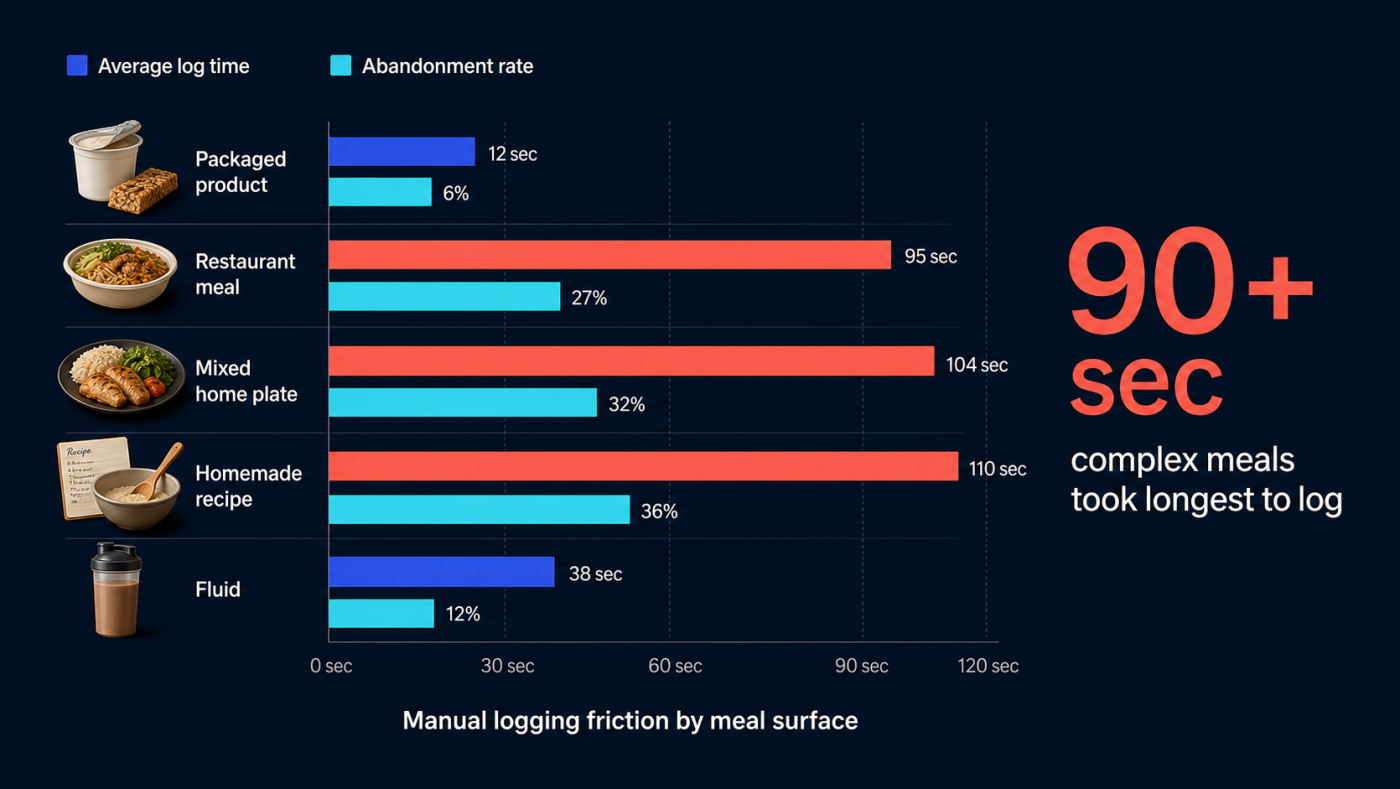

Fig 1 – Manual logging time and abandonment by meal surface, six month rolling audit

Business note

Consumer subscription retention often hinges on workflows the product team has not measured. The client had optimized barcode and database search to sub 10 second interactions. Complex meals like dinner out, home cooked, and kid’s leftovers on the counter routinely took over ninety seconds and got skipped. Skipped meals corrupted the coaching math downstream. Founders and heads of product building any AI capability into an established consumer app should audit where the current baseline actually fails before scoping the AI work.

Discussions with the client’s coaching leads and food database curators surfaced a second constraint. An earlier AI food identification attempt had held up on packaged branded products. It degraded across four other surfaces:

Mixed plates where multiple foods overlapped on a single dish
Restaurant food where portioning and ingredient composition were opaque
Homemade recipes where the model had no branded reference
International or off catalog foods missing from the client’s verified database

The subscriber base started from moderate trust with any new AI capability.

The trust boundary was the third constraint the client’s product team set. The subscriber base had been trained by years of coaching interaction to expect the product to show its math. An opaque calorie total from an AI result would violate that expectation, and community feedback made clear that any AI feature had to expose a per ingredient breakdown to preserve trust across the base regardless of the number’s accuracy. Any AI output we introduced had to be inspectable and editable at the ingredient level, because editability is how a data first product shows its math to a trained subscriber base and how the AI capability collects the correction signal that improves it over time. Every accepted meal had to flow into the adaptive coaching engine as structured food identifiers keyed to the verified nutrition database, because the engine’s weekly target math depends on those identifiers, and any free form nutrition estimate reaching the engine would corrupt coaching output across every subscribed goal.

Portion and serving size estimation surfaced as the fourth constraint. Even where food identification was correct, portion estimation drove the largest share of downstream target adjustment error, especially for foods or drinks where volume is difficult to infer from a photo alone.

Solution

Our team was engaged to contribute the AI intelligence layer for the client’s food logging and meal intelligence capabilities. The work slotted into the client’s existing mobile app, verified nutrition database, and adaptive coaching engine, all of which remained owned and operated by the client’s inhouse team. The subscriber opens the app the same way as before, chooses to snap a photo, describe the meal, or combine both, and the AI capability returns an ingredient breakdown that appears in the same log entry view the app already used for barcode and manual search results. The intended user experience kept every AI proposal editable at both the ingredient and portion level, with accepted meals flowing into the same structured logging schema used by the app’s existing food entries.

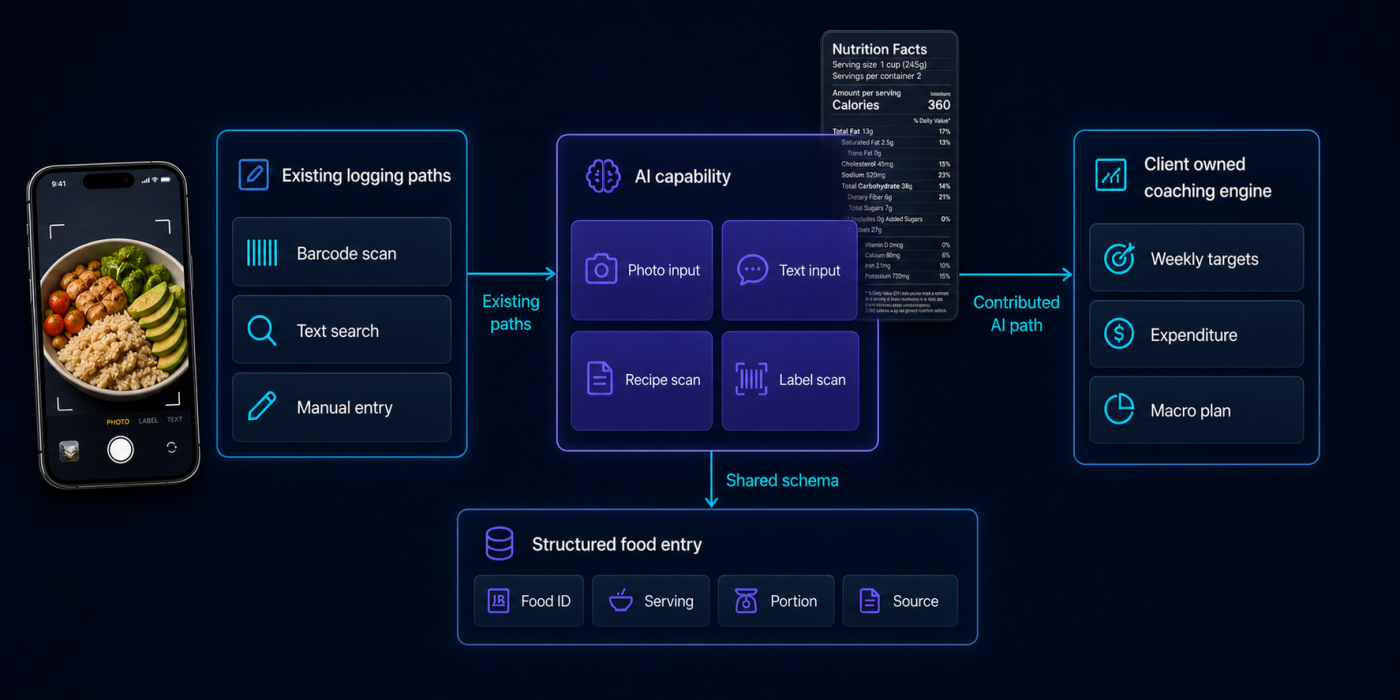

Fig 2 – AI capability integration diagram showing the contributed intelligence layer

Core Features Our Team Contributed To

01. AI Food Identification from Meal Photos. Recognizes foods from meal photos, mixed plates, packaged products, and restaurant food, turning unstructured meal input into structured food items subscribers can log.
02. AI Calorie Counter. Estimates calories and macros from photos or natural language meal descriptions, returning a fast estimate subscribers can inspect and correct at the ingredient level.
03. Ingredient Level Meal Breakdown. Breaks meals into editable components (foods, ingredients, serving estimates, nutrition entries). Ingredient level transparency is what protects subscriber trust in the underlying coaching product.
04. Editable AI Logging Workflow. AI generated entries can be reviewed, adjusted, replaced, or combined with barcode, search, and database entries, keeping the AI useful and transparent.
05. AI Recipe and Meal Parsing. Parses meals and recipes from less structured inputs including recipe URLs, cookbook photos, and written or handwritten recipe scans, with each ingredient reconciled against the client’s verified nutrition database.
06. AI Label OCR and Custom Food Support. AI assisted custom food creation from product labels and packaging, especially useful for international products, off catalog SKUs, and items missing or inaccurate in the verified database.
07. Meal Intelligence Groundwork for Meal Plan AI and AI Diet Planner. Data plumbing that helps subscribers move from “what did I eat?” to “what should I eat next?”, connecting to meal suggestions, recurring meals, macro aware planning, and filling remaining daily targets, which is the direction the roadmap is moving toward.

Implementation Approach

The engagement ran as a four phase collaboration with the client’s product, coaching, and data teams. Each phase produced a deployable increment of the AI capability that integrated into the client owned app, so the client could validate assumptions on real subscriber usage and control scope release by release.

Phase 1: Discovery and AI Recognition Architecture

The first phase focused on understanding subscriber logging behavior on the existing app and defining a recognition architecture that could handle the full meal surface distribution.

Meal Surface Audit. Working with the client’s product analytics team, we reviewed logging telemetry across the subscriber base, segmenting log entries by meal surface (packaged branded product, restaurant meal, mixed home plate, unpackaged snack, fluid) and by logging path (barcode, text search, manual entry, prior AI attempt). The pull covered a rolling six month window and stratified by subscriber tenure (new, active, at risk) to isolate whether logging friction was a first 30 days problem or a whole population one. This audit confirmed what the client’s team already suspected. Packaged and barcode logging were fast and accepted. The slow logging surfaces (restaurant meals, mixed home plates, homemade recipes) produced the longest log entry times and the highest abandonment rate. The AI capability had to attack the slow surfaces without disrupting the fast ones or altering the log entry surfaces already in production.

Two Stage Recognition Architecture. A single step photo to calorie total mapping had proven unreliable on the long tail of meal photos, so we designed a two stage recognition approach that mirrors how a nutrition coach reads a meal photo. Stage one identifies foods present in the frame and returns each as a candidate ingredient with a confidence score, running an object detection head with multi label classification over a curated food class vocabulary drawn from the client’s verified database taxonomy. Stage two estimates portion and serving size for each identified ingredient through a POST /v1/portions/estimate call, using reference objects in the frame (plate, hand, standard cutlery) where present, and defaults to category typical serving priors when no reference object is detected. Both stages run through ONNX Runtime, with the initial candidate pass optimized for on device execution via Core ML and Vision on iOS and LiteRT on Android, and reconciliation against the verified database handed off to a cloud inference tier. This split kept median end to end latency under 4 seconds on mid range Android devices while preserving accuracy on the cloud side. The client’s coaching leads reviewed and approved the architecture based on the POC outcomes and its preservation of editability at both ingredient and portion stages, which kept subscriber corrections flowing into retraining directly.

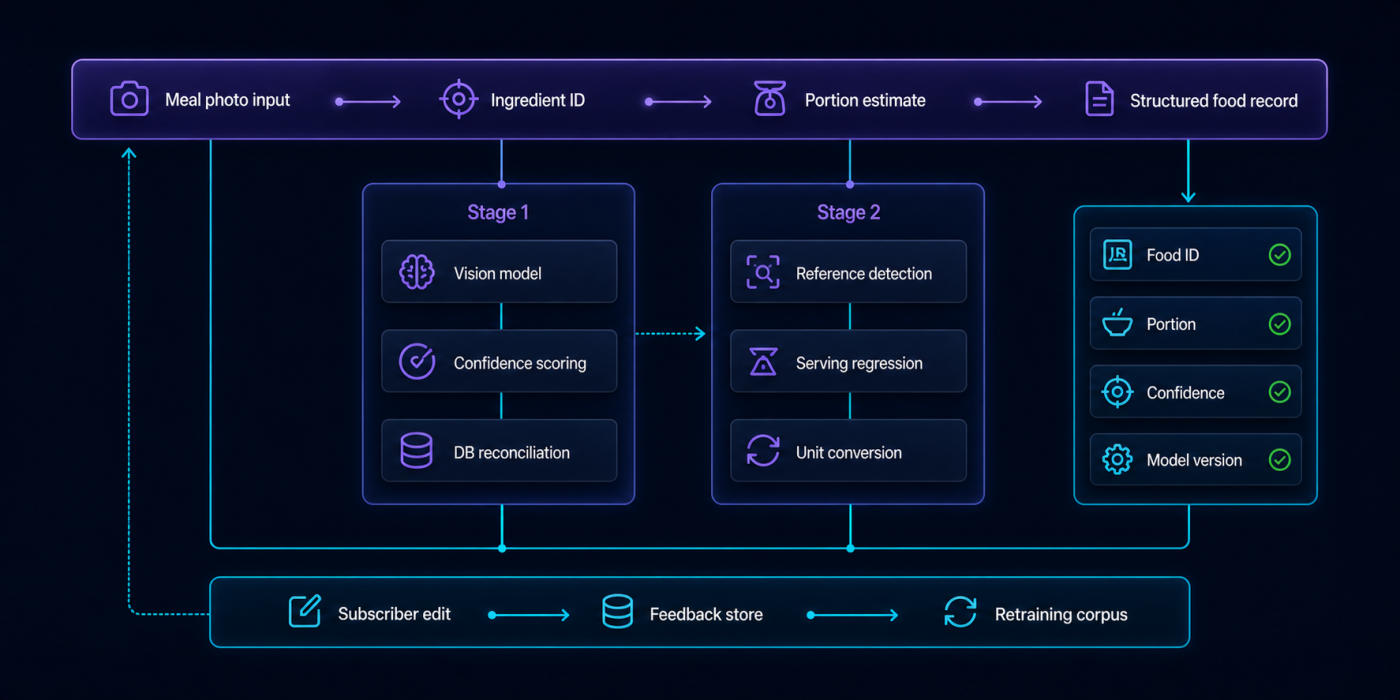

Fig 3 – Two stage recognition pipeline: ingredient identification then portion estimation

Technical note

The question CTOs ask most when we present this pipeline is why two stages instead of one end to end model. Single stage models score well on curated benchmarks. The long tail of real world meal photos is where they underperform, and a single confidence number gives the UI no way to tell the subscriber whether the model is uncertain about what the food is, how much of it there is, or both. Splitting identification from portion estimation lets each stage report its own confidence, lets the UI surface confidence at the stage that actually matters to the subscriber, and lets retraining target the specific stage where errors concentrate. Compute per meal is roughly 1.6x higher, but on a paid subscription product the trust and retraining payoff justifies it.

Phase 2: Verified Database Reconciliation and Coaching Engine Integration

With the recognition architecture approved, our team moved into integration with the client owned verified nutrition database and adaptive coaching engine.

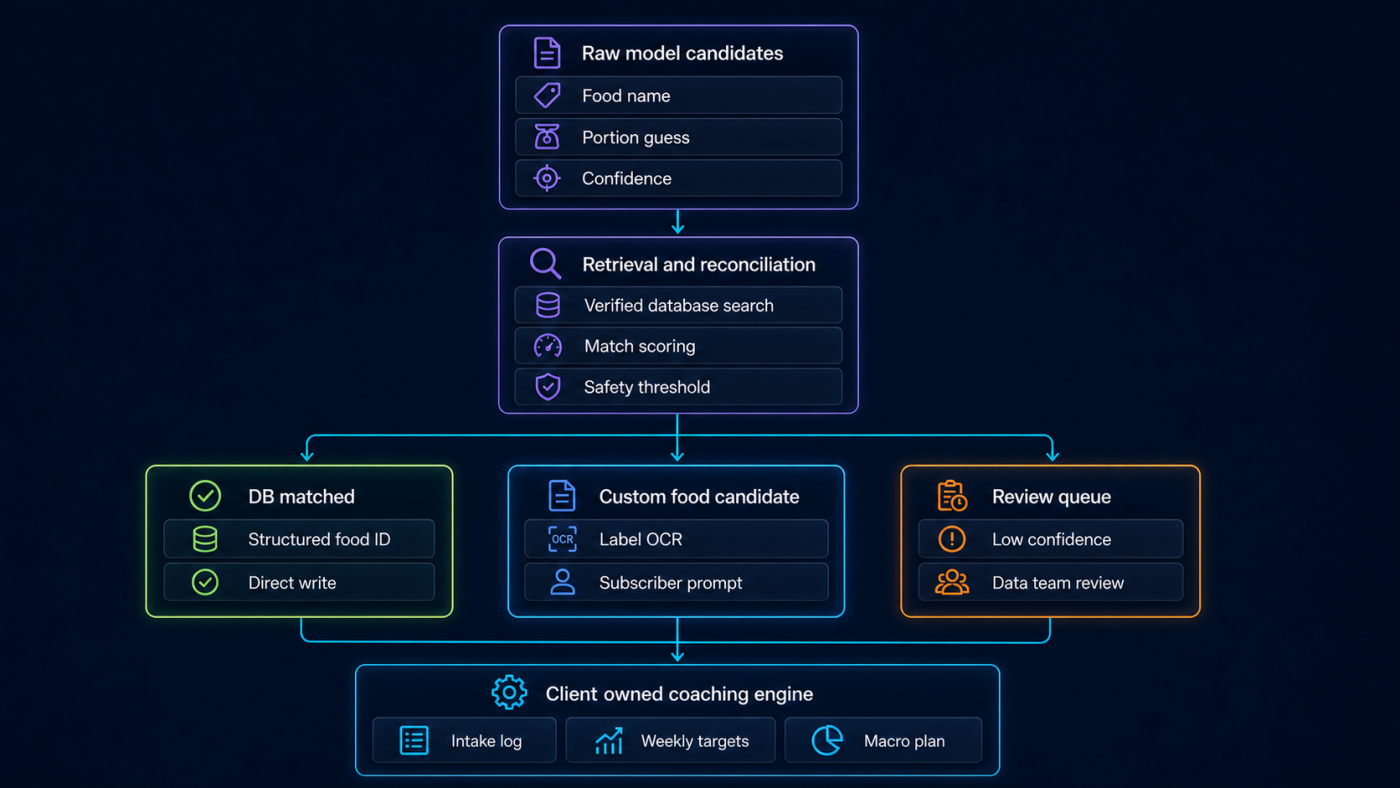

Fig 4 – Database reconciliation flow routing candidates to matched, custom food, or review queue

Database Reconciliation as a Hard Constraint. The adaptive coaching engine consumes structured food identifiers keyed to the client’s verified nutrition database. Our recognition pipeline was designed from the first sprint to prioritize foods that resolve to the client’s verified nutrition database, while routing unresolved cases toward generated, custom food, or review workflows. A retrieval step filters raw model output against database records before any candidate reaches the subscriber, so the AI capability was designed to avoid treating free form estimates as trusted entries when a database resolved or reviewable alternative was available. The retrieval step uses embeddings from a fine tuned food domain encoder against a vector store indexed over the client’s verified food records in PostgreSQL, with a fallback lexical search over the same corpus when embedding confidence sits below threshold. Foods that cannot be matched surface as custom food creation prompts for the client’s data team review queue, keeping the engine’s data structure intact.

Technical note

The reconciliation pattern here is a constrained variant of retrieval augmented generation, but the retrieval corpus is a curated food database rather than a general document store. The retrieval step is not there to augment the model’s answer with extra context. It is there to constrain the model’s answer to a whitelist of foods the coaching engine already knows how to reason about. For teams building AI into apps where downstream systems consume structured identifiers (not free text), this constrained retrieval pattern matters more than the model choice itself. A bigger model gives you better raw identification. A tighter retrieval constraint gives you a system the rest of the app can trust.

Structured Food Identifier Flow. Every accepted meal writes to the client’s adaptive coaching engine as a structured food identifier with fields for food_id, serving_id, portion_g or portion_ml, model_version, and confidence_score, using the same schema the engine already consumed for manual, search, and barcode logs. Weekly target recalculation runs identically whether the meal came in through the AI capability or through any pre existing logging path. This preserved the coaching engine’s data integrity across the full subscriber population, which was the non negotiable requirement from the client’s coaching leads.

Business note

The reason this architecture works is a boundary the client’s coaching leads insisted on before engineering began: the AI capability had to write to the same schema the coaching engine already consumed. Teams that skip this step and let AI outputs write to a parallel schema end up with two data models the downstream analytics team has to reconcile forever. For product leaders scoping an AI addition to an existing app, the least glamorous decision (which schema wins) is usually the one that determines whether the AI capability survives its first year in production.

Editability as a First Class Design Element. Per ingredient breakdowns and inline editing controls sit inside the AI result view, while confidence and override signals inform model evaluation and improvement. During design review, when product pressure surfaced to hide uncertainty behind a single number, our team pushed back and the client’s product lead agreed to keep the ingredient breakdown visible. The result is an AI capability subscribers accept, edit, or replace at the ingredient level, and the override signal that engagement produces feeds retraining directly.

Phase 3: Multi Input Logging, Recipe Intelligence, and Hard Cases

The third phase built out the input surfaces beyond single photo capture and addressed the meal types the prior AI attempt on the app had failed on.

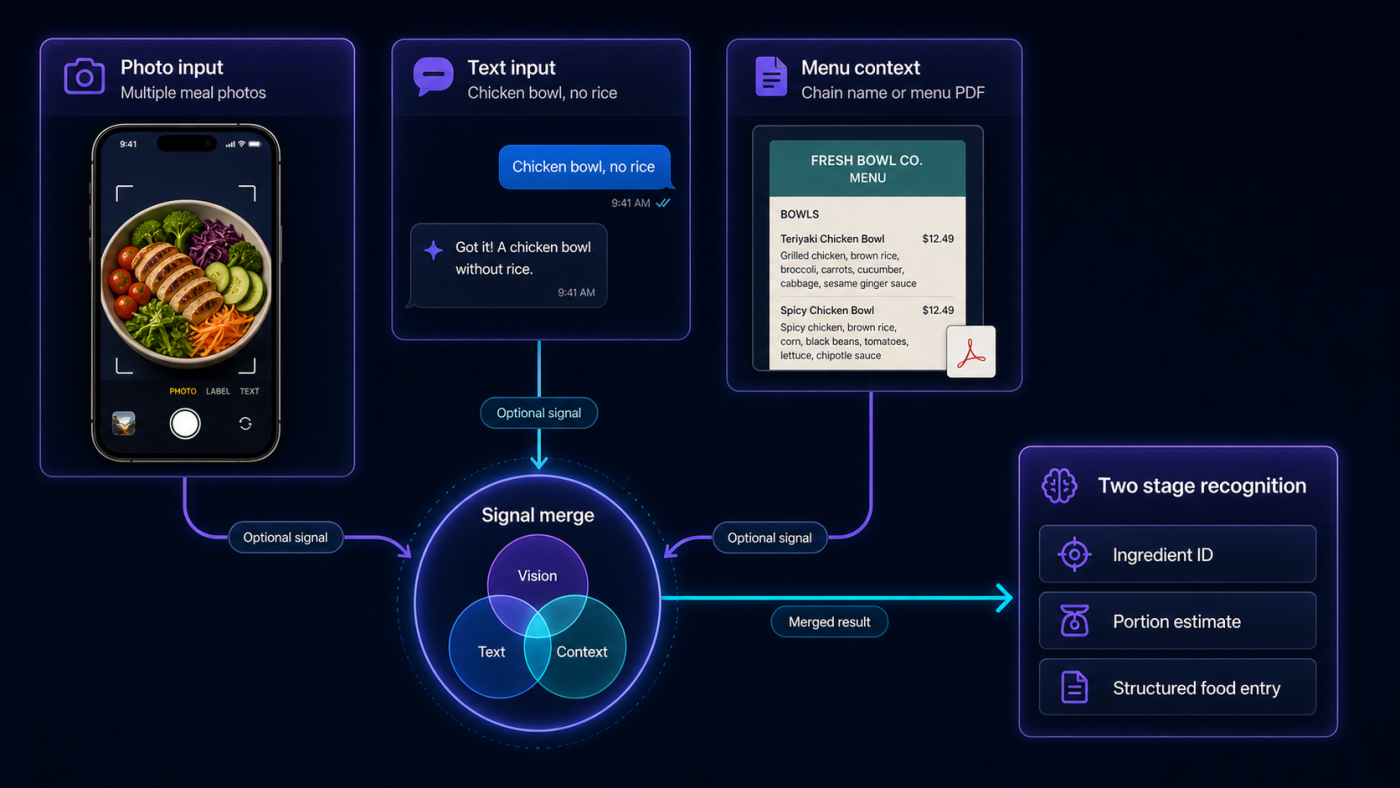

Fig 5 – Multi input reconciliation flow merging photo, text, and menu context signals

Snap and Describe Hybrid Input. Subscribers can combine a photo with text context. A restaurant meal photo plus “chicken bowl from the local chain, no rice” triggers different reconciliation than the photo alone. The OpenAI Responses API with Structured Outputs handles the text parsing through a POST /v1/meals/parse-text call, validating candidates against a strict JSON schema, then reconciles against vision output where both are present before merging into the identification stage.

Multiple Photo Capture for Mixed Plates. Complex mixed plates with multiple foods overlapping confused single photo identification. We built a multiple photo and text capability, so subscribers can use one or more photos and/or text, and the module reconciles signals across inputs before returning a merged breakdown. Reconciling across multiple inputs raised identification accuracy on complex mixed plates by roughly 8 percentage points against the single photo baseline.

Operational note

Multi input capture looks like an engineering feature but ships as a coordination problem across UX, ML, and data engineering. The UX team had to design the additional capture flow without adding steps subscribers would skip. The ML team had to build a signal merge that reconciled conflicting inputs (a photo showing rice, text saying “no rice”) without silently favoring one input over the other. The data team had to instrument the flow so the analytics stack could tell whether accuracy gains came from the second photo, the text context, or the two combined. Product leaders adding multi input AI capabilities to an existing app should scope all three tracks up front, not just the model work.

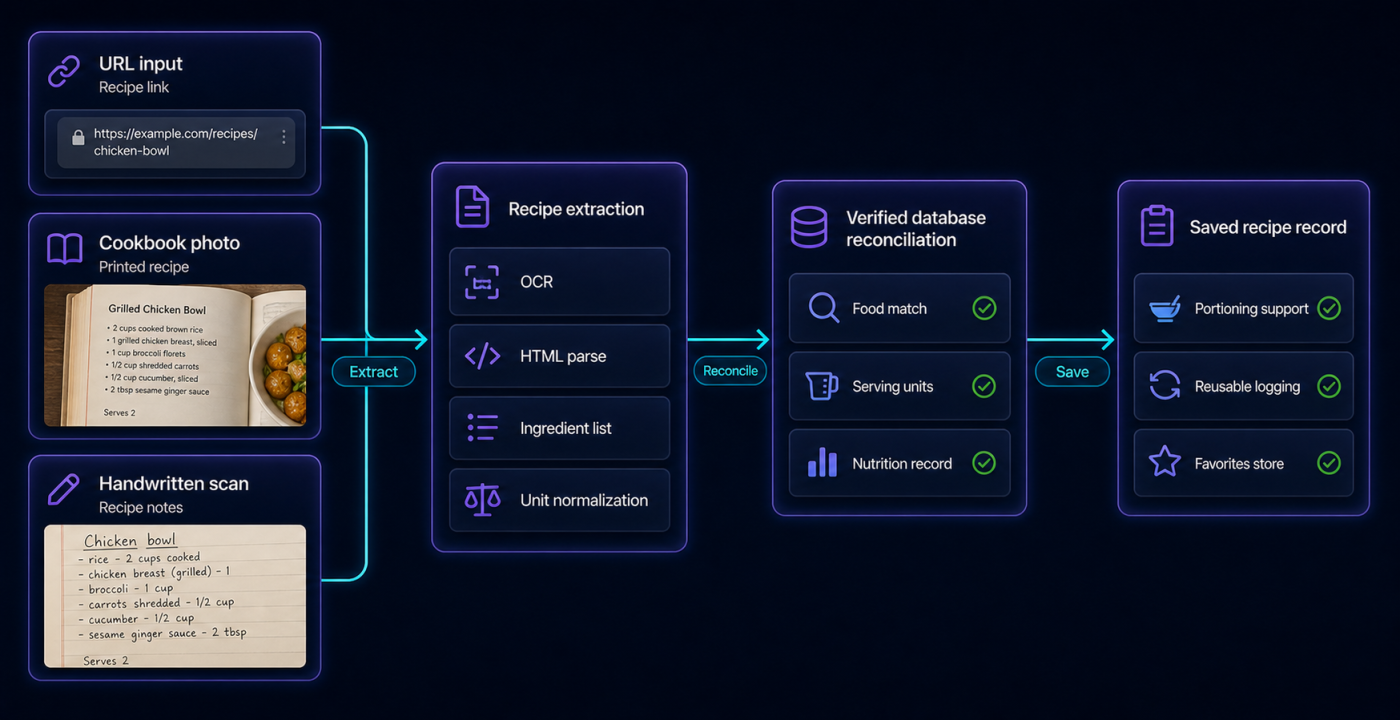

Fig 6 – Recipe parsing pipeline from URL, cookbook photo, or handwritten scan to a saved recipe record

Restaurant Menu and Context Grounding. Uploaded menus are parsed through an OCR pipeline and a structured extraction step powered by the OpenAI Responses API with Structured Outputs, producing menu item records with expected macro composition. Chain names resolve against a preloaded chain menu database, and user provided text context is parsed the same way into candidate ingredients. The three inputs together constrain the candidate food set the vision model considers, so a photo of a bowl paired with a chain name and a description like “chicken, no rice, extra guac” produces a scoped identification against that chain’s menu items. This raised identification accuracy on chain restaurant meals significantly above the general restaurant slice.

Recipe Parsing. The recipe capability accepts input by URL, by cookbook photo, or by handwritten or printed recipe scan. The parser we built extracts the ingredient list with quantities and unit conversions using OCR for handwritten and printed scans and the OpenAI Responses API with Structured Outputs for URL and text based recipe parsing, reconciles each ingredient against the client’s verified database, and creates a recipe record the subscriber can log by portion on future occasions. Recipe imports write to the client owned favorites store, so recurring homemade meals become one tap re logs.

Label OCR for Off Catalog Products. Nutrition label OCR was tuned for international and off catalog packaged products, extracting nutrition facts across US and EU label formats. The OpenAI Responses API with Structured Outputs handles the structured field extraction into the client’s food schema, with custom food creation available where the label content does not match a database record.

Fluid Handling. Fluid portion estimation is the acknowledged weakest slice of the current capability. Volume estimation from photo alone has structurally lower ceilings than solid portion estimation because container geometry drives the estimate more than food appearance. The capability currently degrades reported confidence on fluid ingredients and surfaces a portion adjustment prompt in the log entry view. A dedicated fluid portion approach using container recognition and typical serving size priors is on the roadmap for the next engagement cycle.

Technical note

Fluid portion estimation is where honest limits matter. The physics do not care how good the model is: two subscribers can pour the same coffee into differently shaped mugs and produce photos with the same visual footprint but different actual volumes. The right response is not to ship a confident wrong number. It is to degrade confidence, surface a prompt, and let the subscriber tell you the volume. Teams shipping AI in nutrition, medical, or measurement adjacent domains should build the confidence degradation path early. Silent overconfidence on the cases the model cannot solve is where subscriber trust breaks first.

Phase 4: Staged Rollout, Continuous Delivery, and Meal Plan AI Groundwork

The final phase rolled the AI capability out to the subscriber base and set up the data plumbing for the meal plan AI and AI diet planner direction the client’s roadmap is moving toward.

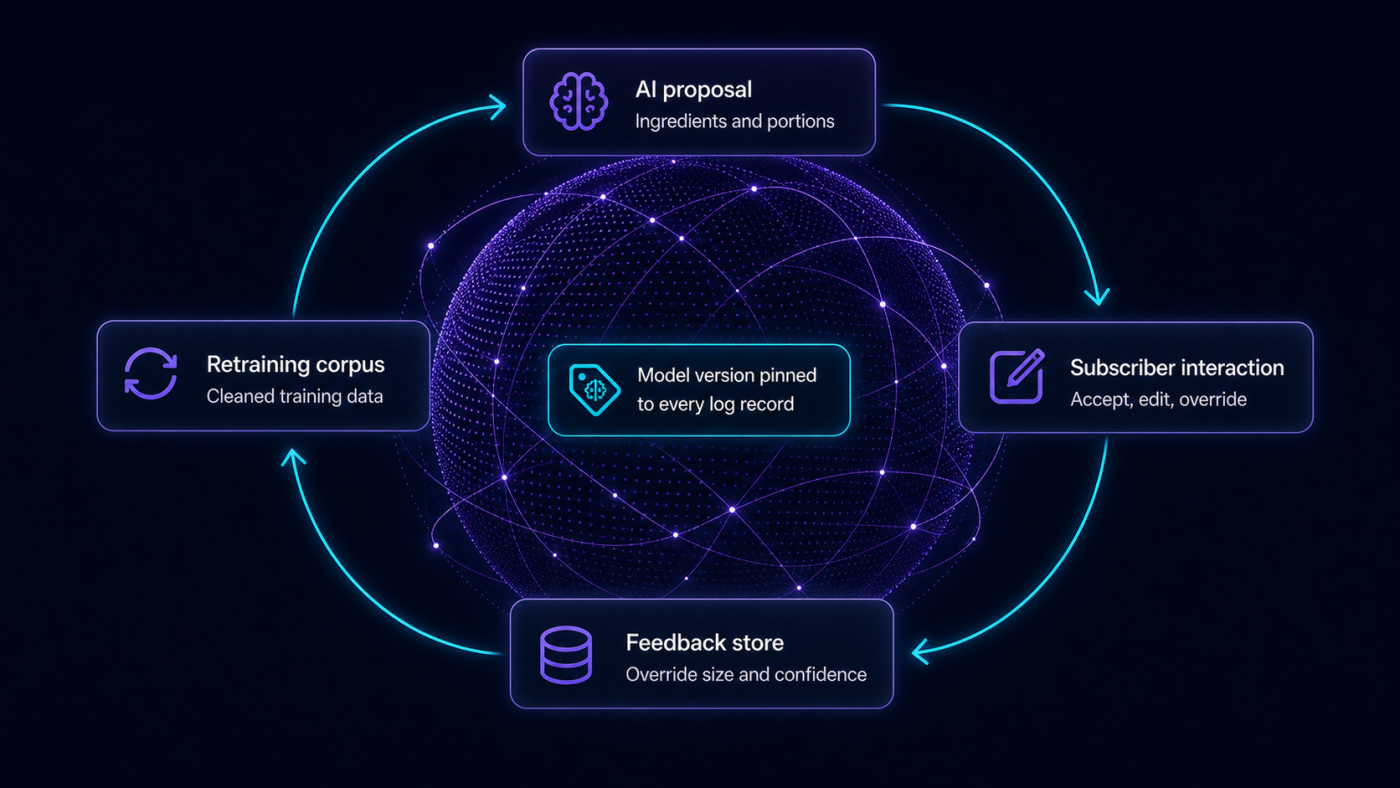

Fig 7 – Feedback loop and retraining cycle from AI proposal through subscriber interaction to model retraining

Staged Rollout. The client released the capability in stages beginning with an opt in beta cohort, expanded to power users identified through logging frequency, and then rolled to the full subscriber base once acceptance criteria were confirmed on production traffic. Each stage produced instrumented telemetry (through OpenTelemetry traces, metrics, and logs) on AI acceptance rate, override rate, override magnitude, and downstream logging completeness, tracked via structured events (ai.proposal.shown, ai.proposal.accepted, ai.proposal.edited, ai.proposal.overridden, meal.logged), which informed the next release gate. Release timing and gating decisions sat with the client’s product team throughout.

Operational note

Staged rollout on a paid subscription app is a different discipline than staged rollout on a free consumer app. The subscribers most likely to catch AI edge cases early are the power users the client cannot afford to alienate. We ran the beta cohort through subscribers who had explicitly opted in to experimental features, then expanded to high frequency loggers before touching the general base, and never used percentage based random rollout on the paid tier. This ordering trades speed of rollout for retention protection. For teams shipping AI to a paying subscriber base, the rollout sequence is a business decision the ML team should not make alone.

Continuous Delivery. A continuous integration and deployment pipeline was established on our side to support a bi weekly release cadence on the AI capability updates. Every commit triggered automated tests against the /v1/meals/recognize endpoint, the reconciliation retrieval layer, and the POST /v1/meals handoff to the client’s coaching engine, with model behavior tests measuring per slice identification accuracy and portion MAE on a pinned regression corpus tracked through MLflow before any build reached staging. Builds that passed all gates were promoted to internal beta channels for the client’s app. Production releases were gated by client QA sign off and client approval.

Meal Plan AI Foundation and AI Diet Planner Direction. Every accepted meal writes to the subscriber’s meal history through the client’s schema, with structured food identifiers and portions. The client’s favorites store and recipe store surface frequently logged meals as one tap re logs. We built the data plumbing that supports the meal plan AI and AI diet planner direction the client’s roadmap is moving toward, where the AI moves from retrospective calorie counting into prospective meal suggestion based on remaining daily macros, historical preferences, and pantry state where available. Public roadmap feedback shows strong demand for meal planning support, recurring meals, and meal suggestions, making forward looking meal intelligence a credible next step after the sleep import feature ships.

Results

Within the first release waves of the AI capability across the subscriber base, the platform produced measurable improvements in food logging speed, food identification accuracy, and coaching engine data integrity.

87% Accuracy

Food identification accuracy reached 87 percent across the full meal surface distribution against consensus registered dietitian labelling, up from the low 60s the prior AI attempt on the same app held on the same corpus. Slice results range from 95 percent on packaged branded products to 76 percent on general restaurant meals without chain context.

-70% Log Time

Average time to log a restaurant meal, mixed home plate, or homemade meal fell from over 90 seconds under the manual baseline to under 25 seconds through the AI capability. The largest gain was on mixed plates, where multi photo capture and ingredient decomposition removed the manual per component identification step subscribers had been doing.

94% Match Rate

94 percent of AI identified foods resolved to a record in the client's verified nutrition database. The remaining 6 percent surfaced as custom food creation prompts for the client's data team review queue, keeping the coaching engine's data structure integrity intact.

65%+ Accept

More than 65 percent of AI ingredient and portion proposals were accepted by subscribers without any edit. The remaining share was edited at the ingredient or portion level, and every edit wrote to the feedback store that feeds retraining. Editability functions as a trust boundary that keeps subscribers engaged with AI proposals at the ingredient level.

12% MAE

Portion estimation mean absolute error against weighed ground truth reached 12 percent on solid foods, clearing the 20 percent acceptance threshold agreed with the client's coaching leads. The fluids slice reached 22 percent against a 30 percent threshold and remains the priority item for the next engagement cycle.

Technologies and Tools

Category	Tools
Mobile	`Swift`, `SwiftUI`, `Core ML`, and `Vision` for iOS. `Kotlin`, `Jetpack Compose`, and `LiteRT` for Android. `ONNX Runtime Mobile` where the same exported model runs across platforms.
AI and ML	`Python`, `PyTorch`, and `OpenCV` for training pipelines. `ONNX` export and `ONNX Runtime` for inference. Food detection models, portion estimation models, and OCR for labels and recipes.
LLM Workflows	`OpenAI Responses API` with `Structured Outputs` for meal text parsing, recipe extraction, label parsing, and strict `JSON` output constrained to the client's food schema.
Backend	`FastAPI` or `NestJS`, `PostgreSQL`, `Redis`, object storage on `S3` or `GCS`, background job workers for OCR and review workflows.
Food Matching	`PostgreSQL` for verified food records, vector search over food embeddings, lexical fallback search, and confidence thresholds applied before any write to the coaching engine's schema.
MLOps	`MLflow` model registry, model versioning, pinned regression datasets, slice level accuracy tests, and release gates before production.
Analytics	Event tracking for proposal shown, accepted, edited, overridden, and logged, integrated with the client's existing analytics pipeline.
Observability	`OpenTelemetry` for traces, metrics, and logs.
Security	Image retention limits, de identification for training data, encryption at rest and in transit, subscriber opt out controls, and audit trails for model outputs.

Services Delivered

AI Software & Application Development, Computer Vision Engineering, ML Engineering, MLOps and Model Governance, Backend Integration for AI Services, QA & Software Testing

Team Composition

Technical Architect, ML Engineers, Mobile App Developers, Backend Developers, DevOps, QA Engineer
