Clixlogix unified Zoho CRM, Inventory, and Shopify into one pipeline for an eyewear brand, with automated sample tracking, inventory sync, multi carrier shipping, and KPI dashboards.
Clixlogix delivered a Zoho CRM, Inventory, and Shopify integration for an eyewear brand managing sales, fulfillment, and e commerce operations across direct to consumer and wholesale channels. The engagement spanned a full ecosystem audit, lead to sample to sale lifecycle design, bidirectional inventory synchronization across Zoho, Shopify, and TikTok Shop, automated multi carrier shipping workflows, and a unified KPI dashboard for finance and operations teams. The system was designed for the client to operate and extend independently, without ongoing consultant dependency.
The client is a US based eyewear brand headquartered in Colorado. The company designs and distributes eyewear through two primary channels: wholesale (B2B accounts through a sample driven sales process) and direct to consumer (DTC orders through Shopify and TikTok Shop). The core team includes a sales leader handling wholesale and custom order verticals, an operations lead overseeing inventory and shipping across multiple facilities, and a finance lead tracking revenue metrics and payment processing.
The company’s operational stack included Shopify and TikTok Shop for e commerce, Zoho CRM for lead and customer management, Zoho Inventory for multi warehouse stock tracking, Zoho Books for invoicing, and an external VoIP provider for outbound sales calls. Before engaging Clixlogix, the company tracked leads manually, managed sample shipments outside the CRM, reconciled inventory between Zoho and its e commerce channels through spreadsheet exports, and assigned shipping carriers by hand on every order. Shopify order sync ran on a 15 minute delay with no attribution data, TikTok Shop orders required manual sales tax adjustments, and product variants (color, lens type, frame style) were not synced consistently across platforms. The operations and finance teams tracked KPIs across five different systems, making month end close a time intensive manual process.
The company had outgrown its operational processes. Multiple constraints across lead management, inventory, quoting, fulfillment, and reporting were limiting the team’s ability to scale the business without adding proportional overhead.
No sample tracking or conversion lineage in CRM. The company’s wholesale acquisition process starts with complimentary samples sent to prospects, but Zoho CRM had no mechanism to connect the initial inquiry, the sample shipment, and the eventual purchase. Samples were routed through the quoting pipeline as complimentary orders, but the CRM captured no structured linkage between the sample and the resulting deal. Lead records were created manually, often in bulk, and the quoting process required workaround account records that created duplicates across modules. Deal conversion required fresh data entry with no lineage back to the original inquiry source or sample status. This severed the ability to analyze which acquisition channels produced the highest value customers or to understand deal progression.
CRM configuration gaps across quoting, tasks, and pipeline stages. The quoting module had configuration issues affecting line item quantities and discounts, which led the sales team to avoid using it. Pipeline stages in the CRM did not reflect the actual sales process, reducing forecasting accuracy. When leads were uploaded in bulk, all associated tasks dropped at once without pacing logic, overwhelming sales reps. No deduplication rules were configured, so the same prospect could exist as a lead, account, and contact simultaneously.
No VoIP call tracking in CRM. The company used an external VoIP provider for outbound sales calls, but no integration existed between the phone system and Zoho CRM. Call logs, durations, timestamps, and outcomes were not captured in the CRM. Sales leadership had no visibility into rep call activity, dials to outcomes ratios, or customer contact frequency.
Inventory counts diverging across systems with no reservation logic. Inventory levels in Zoho Inventory, Zoho CRM, and Shopify were frequently inconsistent. The company relied on manual exports and reconciliation to answer basic questions about stock availability. During peak seasons, inventory was double booked because no reservation mechanism existed to hold stock at the quote stage. Data discrepancies between Zoho and Shopify created fulfillment delays and customer communication errors. No automated sync mechanism existed.
Incomplete data mapping across Shopify and TikTok Shop. Orders from the company’s Shopify store and TikTok Shop flowed into Zoho CRM, but the sync was unidirectional and incomplete. Shopify order sync operated on a 15 minute delay, too slow for accurate inventory during high volume periods. Product attributes (SKU, color, lens type, frame style) were not mapped consistently between platforms. UTM attribution and customer classification data did not pass through. TikTok Shop orders required manual sales tax adjustments because the marketplace collects and remits tax differently than DTC orders. Shipments were not always created automatically for e commerce orders, requiring manual fulfillment marking. This prevented the team from understanding which channels drove orders, which products were selling, and how online sales correlated with inventory depletion.
Manual carrier selection on every shipment. The shipping team managed a multi carrier workflow (UPS for wholesale, USPS for samples and lightweight packages) with rules based on weight, destination, and order type. This workflow existed as a documented process but was being executed manually on every order. Every shipment required review and carrier selection, introducing delays and inconsistency. Operations had no visibility into shipping status, carrier utilization, or fulfillment SLAs.
KPI tracking fragmented across five systems with no rep level visibility. Finance and operations tracked KPIs (monthly sales targets, units shipped, average order value, customer acquisition cost) across Zoho CRM reports, Zoho Inventory snapshots, spreadsheets, and analytics from e commerce and marketplace platforms. No unified dashboard existed. Key metrics like revenue per rep, quota attainment, follow up compliance, and customer contact frequency were unavailable. Different team members used different data sources, resulting in disagreements about performance and missed visibility into operational trends.
No foundation for operational scaling. The company was launching new product lines, expanding into new channels, and adding team members. The manual process could not absorb this growth. No re-engagement campaigns existed for inactive prospects. No CRM governance framework defined ownership of data quality or cleanup. Leadership wanted a system they could operate and extend independently as the business evolved.
Clixlogix delivered the engagement across five phases, each designed to resolve a specific operational layer while building toward full automation from lead capture through fulfillment and financial reporting.
The engagement began with a comprehensive review of the client’s Zoho CRM configuration, Zoho Inventory setup, Zoho Books integration, and Shopify e commerce store. The audit mapped all module relationships, documented the existing data flow between platforms, identified twenty operational gaps, and produced a prioritized remediation roadmap.
The audit surfaced several structural findings. Lead records were created manually, often in bulk, with no structured classification for sample tracking. The quoting module had line item configuration issues that prevented reliable use by the sales team. Deal records were frequently incomplete or created after samples had already shipped, severing the data lineage. Contacts and Accounts were sometimes duplicated across sales and shipping functions because the quoting workflow required workaround records that bypassed the standard lead conversion path. No deduplication rules were active. Zoho Inventory was configured but not connected to CRM or Shopify, and no stock reservation mechanism existed to prevent double booking during peak periods. Product variants were tracked in Zoho but not synced to Shopify or marketplace channels, creating a master data problem. The Shopify integration used a basic API connector with unidirectional sync and no UTM mapping. The company’s VoIP provider was not connected to CRM, so call activity data was invisible to management.
The operations team walked Clixlogix through the multi carrier selection logic via recorded video, revealing a rules based decision tree that was being executed manually on every order. The process involved weight thresholds, destination zone checks, weekend and holiday date logic, and carrier preference rules based on package type. Finance shared a wishlist of KPIs they needed in a single view: monthly sales by vertical, average order value, customer acquisition cost, repeat purchase rate, revenue per rep, quota attainment, customer contact frequency, and payment processing metrics.
The audit deliverable was a structured assessment document organized by functional area, with a solution design mapping each gap to a specific Zoho module, automation, or integration. This document became the blueprint for all subsequent phases.
The second phase addressed the broken lifecycle between prospect inquiries, sample shipments, and deal conversion, along with the lead management gaps that created data quality issues across the CRM.
Lead Deduplication and Assignment. Clixlogix configured CRM deduplication rules that verify incoming leads against existing records across all modules (email, phone, name) before entry. Bulk lead uploads now trigger automated validation, and duplicate entries are flagged before they enter the pipeline. Verified leads are distributed to sales reps via a round robin assignment workflow, replacing the manual triage that had been consuming leadership time. When the team adds or removes a rep, the assignment groups update without requiring technical changes.
Sample Tracking Module. Clixlogix designed and deployed a dedicated Zoho CRM module that captures a complete snapshot of every sample shipment. Complimentary sample orders now flow through the standard quoting pipeline with structured tracking at each stage: product SKU, shipment date, carrier, tracking number, recipient details, and delivery status. The module is linked to the Leads module via a custom relationship field and populates automatically when a lead moves to the Sample Sent stage. The sample tracking record persists after lead conversion, creating a queryable audit trail that preserves the full acquisition lineage.
Automated Follow Up Sequences. Automation rules create tasks for the assigned sales rep at 7 days after sample shipment if the prospect has not responded, and again at 14 days. At 21 days with no contact, the system escalates to the sales rep’s manager. This cadence runs automatically and surfaces stalled prospects before they go cold. Task pacing logic distributes follow up activities across the week to prevent reps from being overwhelmed after bulk lead uploads.
VoIP Integration. The company’s VoIP provider was connected to Zoho CRM via the PhoneBridge framework, enabling automatic logging of call activity (duration, timestamp, outcome) against lead and contact records. Sales management gains visibility into call volumes, outcomes, and contact frequency without manual data entry.
KPI Impact. Sales gains visibility into sample to close conversion rate by channel and geography. Marketing can measure which acquisition sources produce the highest value deals by tracing every deal back to its originating inquiry. Management can track rep call activity and follow up compliance alongside deal progression.

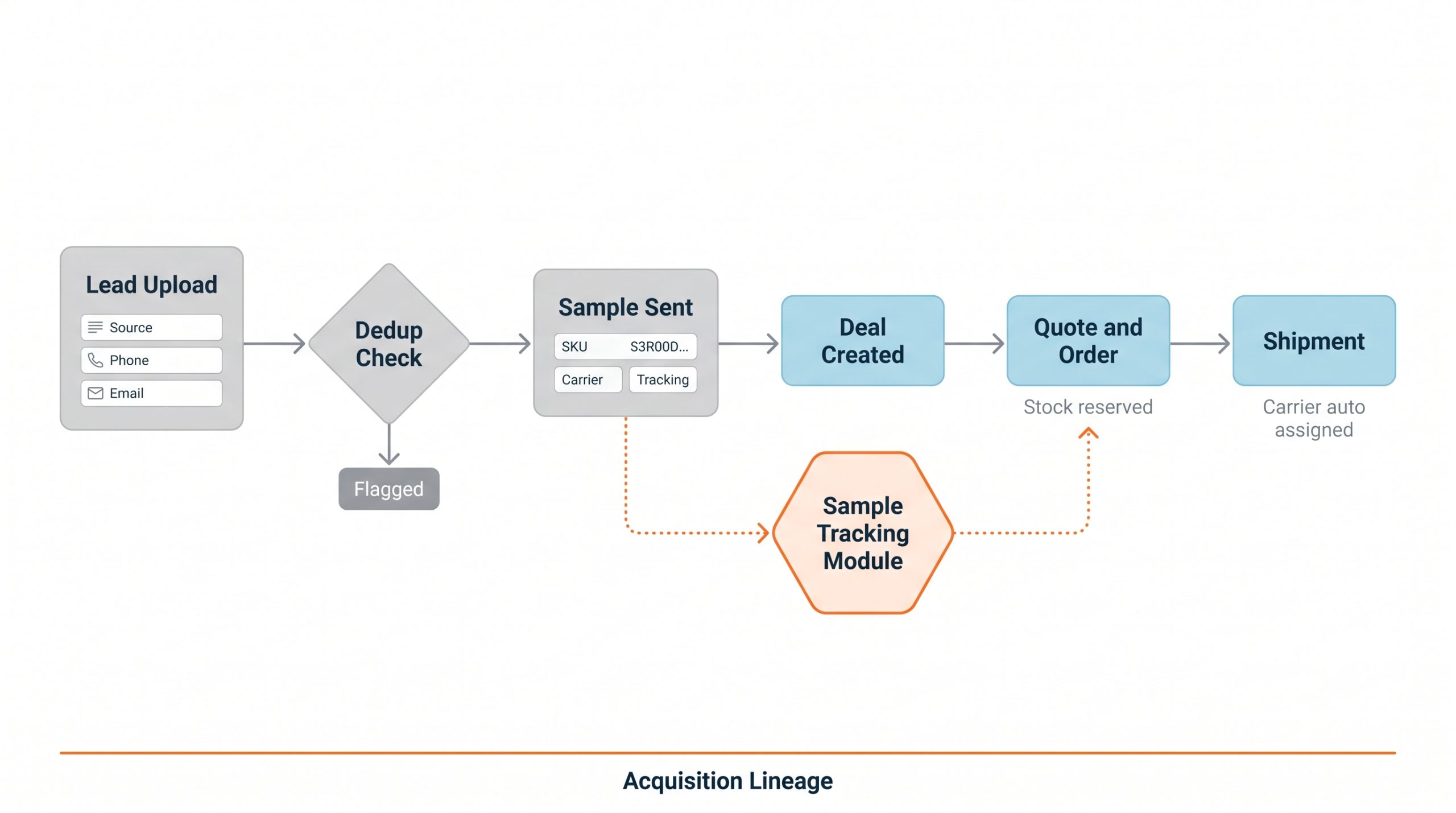

Fig 1. The lead to fulfillment lifecycle preserves acquisition lineage from initial inquiry through sample tracking, deal conversion, inventory reservation, carrier assignment, and financial reporting.
The third phase addressed the interconnected data problems: inventory divergence across systems, the absence of stock reservation logic, incomplete order mapping from Shopify and TikTok Shop, and variant level product data that was not syncing across platforms.
Bidirectional Inventory Sync. A Zoho Flow runs on a scheduled cadence (every 6 hours for full reconciliation, with near real time event driven decrements on each shipment) and compares inventory levels across Zoho Inventory, Zoho CRM, Shopify, and TikTok Shop. The flow queries current stock by SKU, identifies discrepancies beyond a 2 unit tolerance threshold, creates tasks for the inventory manager with variance details and source data, and logs all sync events in a dedicated audit table. When a shipment is created in Zoho Inventory, a Flow rule sends API calls to decrement stock in Shopify and TikTok Shop. When a package is cancelled or deleted, inventory automatically returns to available stock.
Inventory Reservation at Quote Stage. To address double booking during peak seasons, stock is now reserved at the point a quote is approved, before the sales order is created. This prevents the same inventory from being allocated to multiple deals simultaneously. If a quote is cancelled or expires, the reserved quantity returns to available stock automatically. Reserved quantities are excluded from available stock displayed on e commerce channels but remain visible to the operations team for planning.
Zoho Inventory’s native reporting provides stock visibility across locations and channels with warehouse level filtering, supporting stock transfers and event based inventory movement (for example, allocating product to a trade show and returning unsold units to the main warehouse).

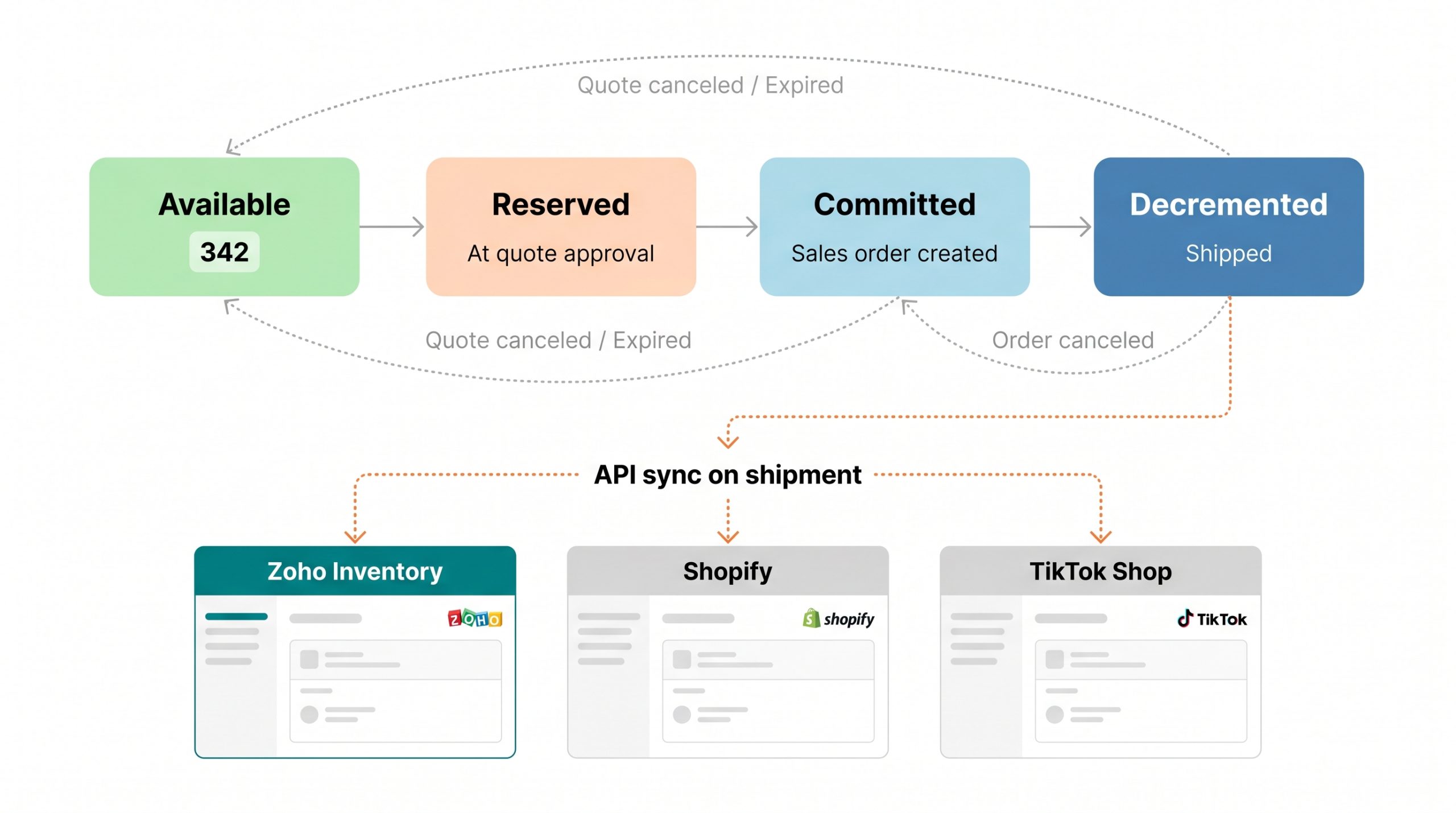

Fig 2. Stock moves through four states from available through reserved and committed to decremented, with automated return paths on cancellation across all connected channels.
Product Variant Sync. Eyewear product variants (color, lens type, frame style, size) are now synced from the master product catalog in Zoho Inventory to Shopify and TikTok Shop. Changes to variant attributes, pricing, or availability propagate across all channels. SKU level reporting tracks sales velocity by variant, giving the product team visibility into which combinations drive the most revenue.
Order Attribution and Channel Mapping. The existing Zoho Shopify connector was extended with field mapping for UTM parameters (mapped to a custom CRM field for acquisition channel tracking), product data (SKU, variant, cost, and supplier mapped to CRM line items), customer classification (Shopify DTC and TikTok Shop orders receive automatic channel and segment classification), and fulfillment status (Zoho invoice status syncs back to order state across both platforms). TikTok Shop orders include automated sales tax adjustment handling within the inventory to invoicing workflow, accounting for the difference in tax collection between marketplace and DTC channels.
A Flow rule validates each inbound order for required fields before writing to CRM. Incomplete orders are moved to a Review status and logged as a task for the operations team. Zoho Analytics allows the team to query orders by acquisition channel, product, variant, and time period, and export results for campaign analysis.

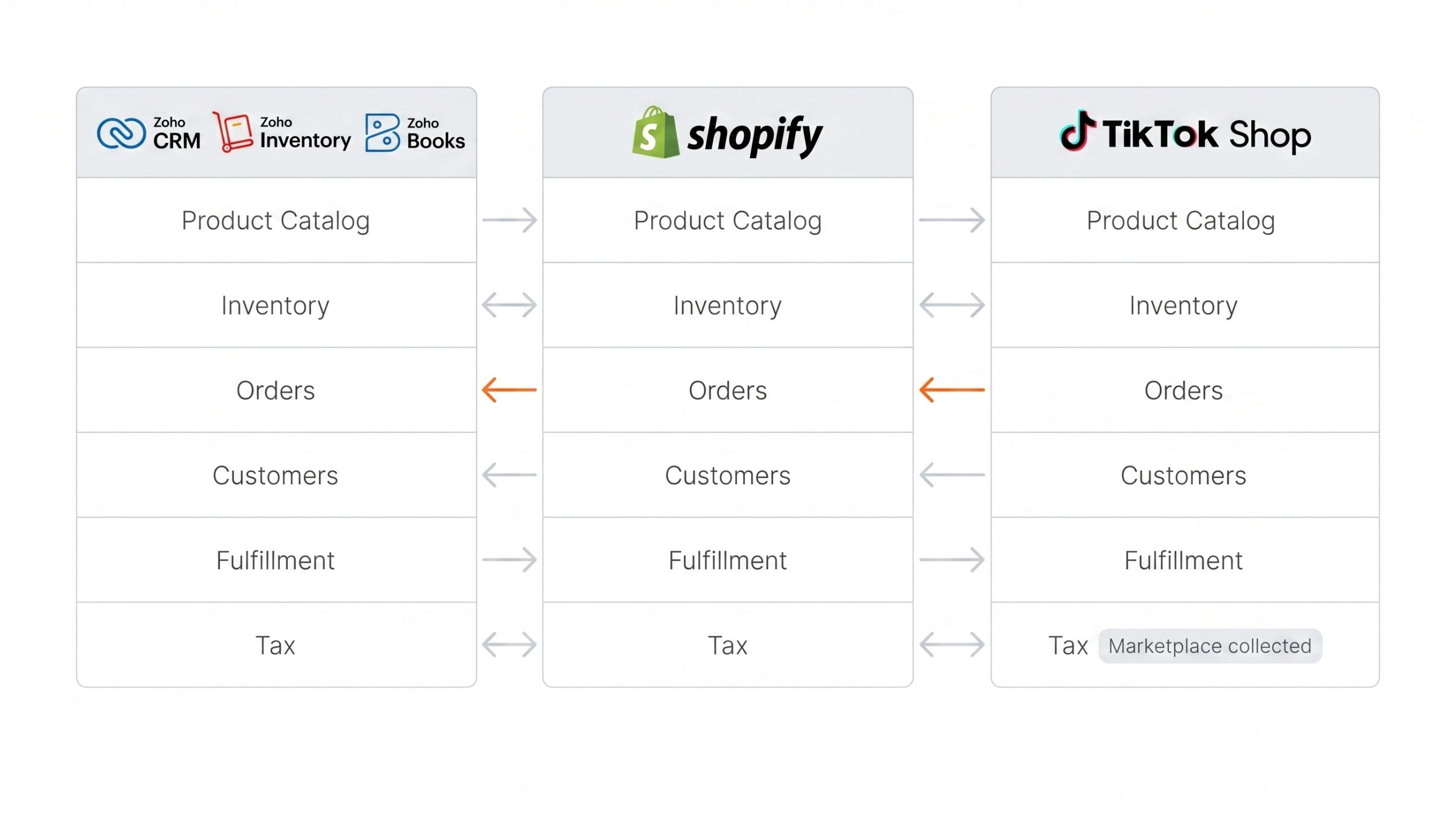

Fig 3. Field level data mapping across Zoho, Shopify, and TikTok Shop showing sync direction, frequency, and handling for each data category.
The fourth phase automated the manual carrier selection process using Zoho Flow for the decision logic and Zoho Inventory’s native carrier integrations for label generation and tracking.
Carrier Assignment Logic. When a Deal or Invoice is marked Ready to Ship in Zoho CRM, a Zoho Flow workflow runs the carrier selection logic: evaluating order type (sample, wholesale, DTC), package weight (thresholds at 1 lb, 5 lbs, and 70 lbs), destination zone (domestic only, with international orders routing to manual review), and date logic (no Friday evening shipments, holiday blackout dates). Flow passes the selected carrier to Zoho Inventory, which creates the shipment via its native UPS or USPS integration, generates the shipping label, and syncs the tracking number back to the CRM deal record.
If Flow cannot assign a carrier (international destination, unknown weight, edge case), the order routes to the operations lead’s inbox as a task with all relevant details. No orders are lost or stalled.

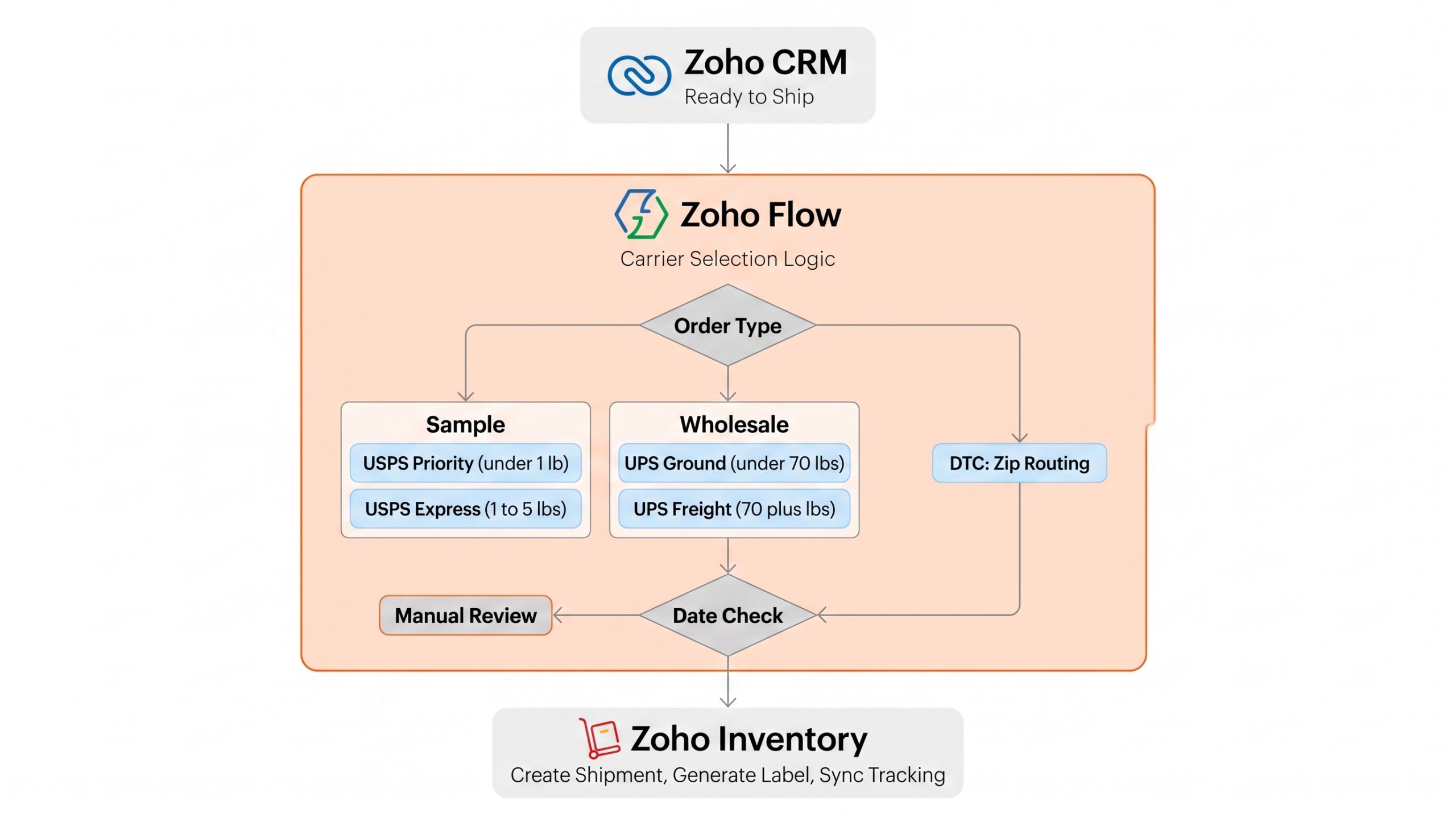

Fig 4. Zoho Flow runs the carrier selection logic across four criteria, then passes the assignment to Zoho Inventory for label generation via native UPS and USPS integrations.
Carrier Analytics. A Zoho Analytics dashboard shows daily carrier utilization (shipment count, percent of total, cost by carrier) and flags anomalies (for example, if USPS is being used for a 50 lb wholesale order, indicating the Flow carrier logic may need adjustment).
The fifth phase delivered the unified analytics layer the finance, sales, and operations teams needed, built on the Zoho products designed for each function.
Finance and Order Analytics (Zoho Analytics). Clixlogix configured Zoho Analytics dashboards pulling live data from CRM, Inventory, Books, Shopify, and TikTok Shop. Monthly sales by channel (DTC Online, Wholesale, Samples) displayed as a rolling 12 month bar chart. Average order value by channel. Customer acquisition cost by channel with month over month trend. Revenue by product line and product profitability. Repeat purchase rate (percent of customers placing 2 or more orders). Customer lifetime value tracking and time between purchases. Order analysis by acquisition channel, product, and variant, with exportable reports for campaign ROI.

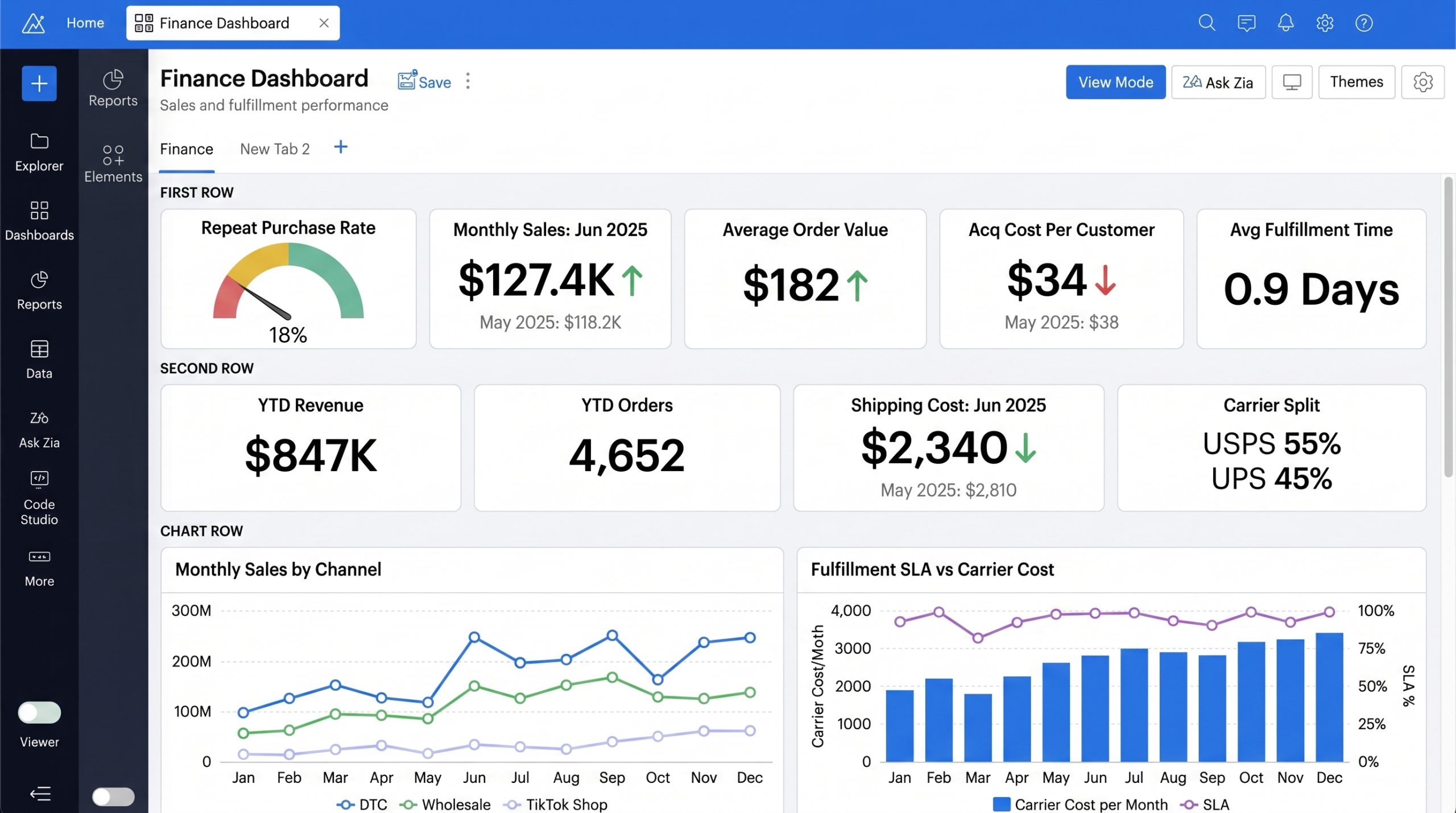

Fig 5. Zoho Analytics Finance dashboard showing sales by channel, average order value, customer acquisition cost, and carrier utilization in a single view.
Sales Performance (Zoho CRM). Native CRM dashboards and reports were configured for revenue per rep with daily, weekly, monthly, and year to date breakdowns. Quota attainment per rep. Conversion rates across pipeline stages (leads contacted, samples sent, deals closed). Follow up compliance (days since last customer contact, filtered to exclude system generated activity). Win rate by lead source. Inactive account reports surfacing customers who have not ordered within configurable time windows. PhoneBridge call activity (volume, duration, outcomes) surfaces alongside deal progression in the same CRM interface the sales team already uses.
Shipping Operations Portal (Zoho Creator). A dedicated Creator application serves as the fulfillment team’s daily interface. Pending orders segmented by age (0 to 24 hours, 1 to 3 days, 3 plus days). Fulfillment SLA performance (percent of orders shipped within 24, 48, and 72 hours). Carrier utilization by shipment count and cost. Shipping cost trend by carrier over time. This is the one interface that required a custom application because it combines data from CRM deals, Inventory shipments, and Flow automation logs into a single operational view that no native Zoho product provides.
Automated Alerts. When metrics exceed thresholds (fulfillment backlog exceeding 10 orders, inventory variance exceeding 5 units on any SKU), the system triggers an alert email to the relevant team lead with actionable context. Alerts run through Zoho Flow on scheduled cadences.
All dashboards and reports pull live from their respective source modules. No manual data entry required. Zoho Analytics reports can be emailed on daily, weekly, or monthly schedules.
All automations were built and validated in a Zoho CRM sandbox before going live. Clixlogix ran structured post live sessions to validate production behavior with live customer data. Testing surfaced edge cases across data validation, shipping logic, and inventory sync timing. All were resolved within the support window.
The system was transitioned to the client with full access to all configurations and a documented handoff process. The client’s team can modify carrier rules, adjust KPI thresholds, add product lines, and extend the dashboard without consulting Clixlogix.

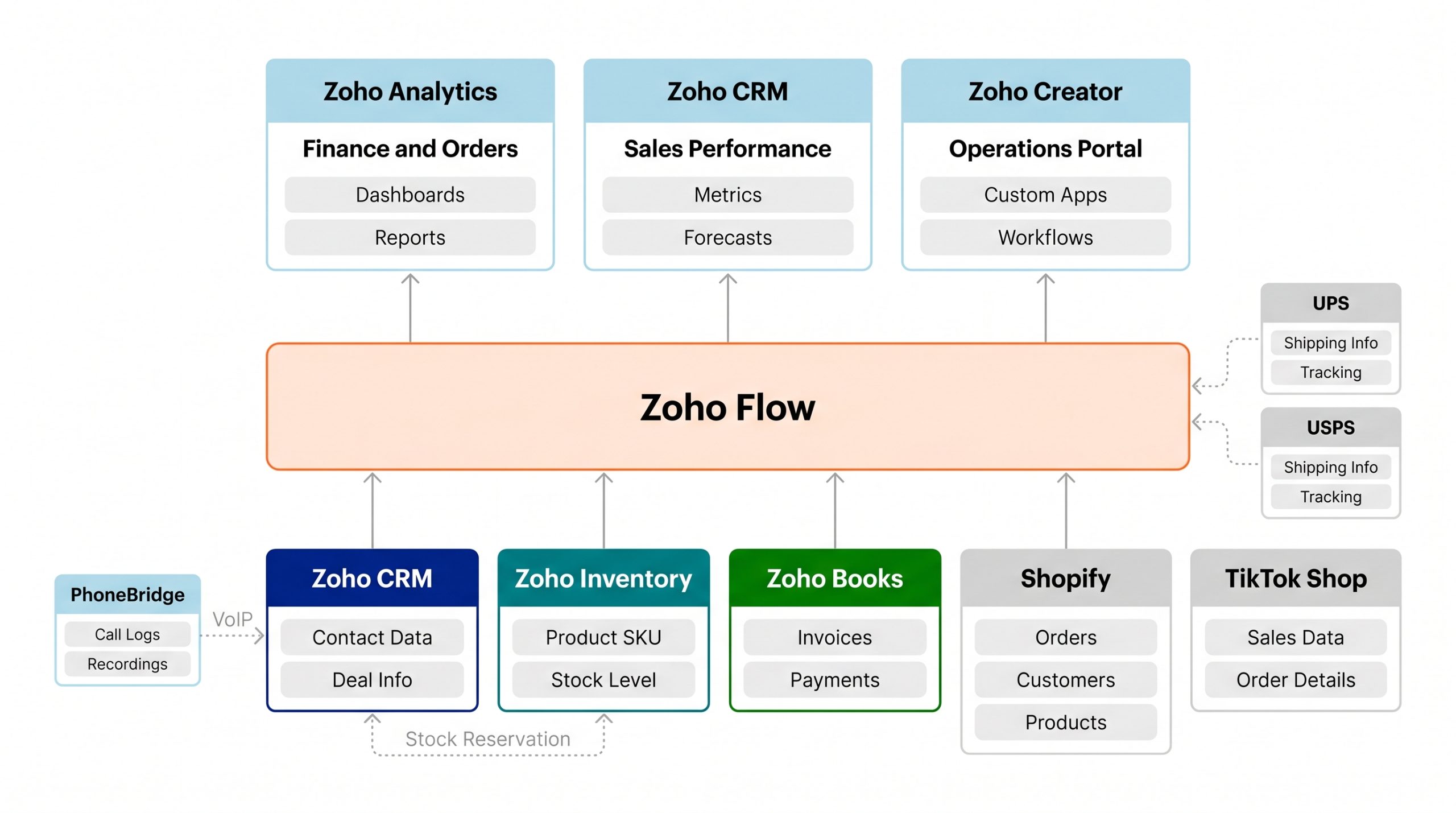

Fig 6. Six data sources feed through Zoho Flow automations into Zoho Analytics dashboards, CRM native reports, and a dedicated Creator operations portal, with PhoneBridge and carrier APIs as external connectors.
The client’s team now operates an integrated CRM, inventory, and fulfillment system that runs from lead capture through shipping and financial reporting. Leads from bulk uploads, Shopify, and TikTok Shop feed a single lifecycle with automated deduplication, round robin assignment, and VoIP call tracking. Zoho Analytics provides finance and order dashboards, CRM native reports track sales performance, and a dedicated Creator portal manages shipping operations. The system is designed so the client can add channels, products, variants, and team members without external help.
Sample shipment data captures automatically at lead conversion, preserving acquisition lineage from inquiry through deal close. Sales measures sample to close conversion by channel and geography across the full pipeline.
A scheduled Zoho Flow reconciles inventory every 6 hours across Zoho Inventory, Zoho CRM, Shopify, and TikTok Shop, with automatic stock decrement on shipment across all connected channels.
Shopify and TikTok Shop orders carry UTM attribution, product details (SKU, variant, cost), and customer classification into Zoho CRM. Marketing measures revenue by acquisition channel.
Zoho Flow runs the carrier selection logic on every shipment. Zoho Inventory creates the shipment via native UPS and USPS integrations and generates labels automatically.
Zoho Analytics dashboards unify finance and order metrics from six data sources. CRM native dashboards surface sales performance. A Creator operations portal manages the shipping queue.
The system design enables the client to add product lines, adjust carrier rules, modify KPI thresholds, and extend dashboards. Full access and documented change procedures provided at handoff.
CRM Platform: Zoho CRM (Leads, Accounts, Deals, Quotes, Invoices, custom modules)
Inventory Management: Zoho Inventory (multi location stock tracking, variant management)
Financial Management: Zoho Books (invoicing, payment tracking)
Automation Engine: Zoho Flow (CRM to Inventory triggers, carrier assignment decision logic, scheduled inventory sync, order validation, webhook notifications)
Analytics and Reporting: Zoho Analytics (finance KPI dashboards, order analytics by channel and variant, carrier utilization reports, automated scheduled reports)
Custom Applications: Zoho Creator (Shipping Operations Portal for fulfillment queue management, order age tracking, and SLA monitoring)
E Commerce and Marketplace: Shopify (native Zoho Inventory integration for order capture, product master data, storefront inventory, fulfillment status sync), TikTok Shop (integrated via TikTok Shop Open API for order sync, inventory sync, and sales tax adjustment handling)
VoIP Integration: Zoho PhoneBridge (VoIP provider connection for automated call logging against CRM records)
External Integrations: UPS and USPS (carrier APIs, label generation), Zoho Sign (contract signing)
Testing Environment: Zoho CRM Sandbox
