IT Consulting and Proof of Concept for a Listed Indian Sugar Producer's Cane Operations Software

Industry

Agriculture & AgriTech

Geography

India

Cooperation Period

2.5 months

Summary

Clixlogix delivered a two and a half month pre build consulting engagement for the sugar division of a listed Indian diversified conglomerate, structuring the digitization of their cane calendar across thousands of contracted farmers and multiple cane growing states. The client engaged Clixlogix after internal attempts at digitization had stalled on strategic and architectural decisions. Across the engagement, Clixlogix delivered on site discovery at the cane processing facility, a three bucket feature prioritization framework that converted directly into a phased build sequence, a complete solution architecture artifact set, a defensible technology stack selection, a stakeholder validated clickable proof of concept, a phased implementation roadmap with rolling wave estimation, a DevOps lifecycle and operational handoff architecture, and a complete IT support and SLA framework. The output was a board defensible blueprint that the client could use to authorize multi year implementation budget with full visibility on scope, cost, risk, operations, and support governance.

About the Client

The client is a listed Indian diversified conglomerate whose sugar business operates one of the country’s larger sugarcane procurement and processing networks. Their cane division works across multiple states in northern India, sourcing from tens of thousands of contracted farmers and managing the agronomic cycle from field preparation through harvest.

Day to day operations sit with field roles known internally as farm managers, who oversee farmer relationships, agronomic guidance, and the execution of the cane calendar, a multi stage schedule that defines what should happen on each farm at each point in the 300 day cane cycle. Above the field layer, a cane team and regional supervisors monitor performance, and the IT and senior leadership groups consume operational reports for procurement planning, yield forecasting, and supplier development.

The client had mature agronomic IP, well established field operations, and a clear intent to digitize the cane calendar across their procurement network. Before committing to a multi year build, they needed strategic clarity on what the MVP should be, what technology stack would survive a decade of evolution, how to sequence capabilities without disrupting active cane seasons, how to validate the workflow against farm manager reality before writing production code, how to design a DevOps lifecycle their internal team could own from day one, and how to govern post deployment support across a multi year platform life. They engaged Clixlogix to deliver that clarity across a two and a half month consulting and proof of concept engagement grounded in on site observation at the client’s cane processing facility.

The Challenge

The cane calendar is the agronomic backbone of the operation. It maps every farm activity, irrigation, basal dose, urea top dressing, foliar spray, weed management, pest treatment, propping, technical data capture, across seven distinct growth stages from germination through maturing. The client’s intent to move this from paper registers to a structured digital workflow was settled. Almost every architectural decision required to make that intent real was still unsettled.

Decision deadlock blocking internal progress. Past internal attempts at digitization had stalled because the strategic clarity required for a multi year build commitment was missing. Engineering complexity had been solvable for years. The architectural and methodological decisions required to commit to a build had not been resolved. Build a native Android application, or build cross platform so iOS could share a codebase later. Use a relational database for the activity log, or a document store for schema flexibility. Host on a third party SaaS, or inside the client’s own AWS account. Design for full offline operation, or assume connectivity coverage would improve over the project lifecycle. Each decision had a cost trajectory of crores over the platform’s life, and each was being debated inside the client without an external party able to make the call defensible to the board.

Deployment sensitivity for a listed entity. The platform would handle procurement, supplier, and yield data across thousands of contracted farmers. The client’s IT posture required that all data remain inside their own AWS account with no retention on any delivery partner’s infrastructure, an operational sensitivity requirement that ruled out multi tenant SaaS options regardless of feature parity.

Validation gap before production code. Past attempts had failed at the point where built features met farm manager reality. The client needed a way to test the workflow against the field hierarchy that would actually use it, before committing implementation budget to a multi year build.

Accessless operational handoff requirement. The client’s IT function intended to own the production environment from day one of build commencement. The DevOps lifecycle had to be designed so that source control, build automation, deployment, monitoring, and operational runbook could all be operated by the internal team without retaining the delivery partner in the production access perimeter.

Support governance gap. Post deployment support across a multi year platform life needed a formal framework: priority tiers, response and resolution matrix, monitoring architecture, escalation paths, reporting cadence, financial model, and review cycle. Without that framework, every support interaction would be ad hoc and every commercial discussion would be re negotiated.

Cane season timeline alignment. The client wanted to enter the next cane season with the platform in production. The consulting cycle had to deliver in two and a half months, with enough rigor that the build phases could begin immediately on acceptance, and with enough validation that the build would not have to be paused for re scoping mid sprint.

The Solution

Clixlogix delivered the consulting engagement across a two and a half month window. A senior delivery team ran discovery, architecture, technology selection, prototyping, DevOps lifecycle design, and IT support framework design as six parallel work streams. The output was a fully specified, architected, prototyped, stakeholder validated, operationally handed off, and support governed platform blueprint ready for implementation.

Fig 1 – Three Up Consulting Methodology Banner

Phase 1: On Site Discovery and Feature Prioritization

The engagement opened with a senior team deployment to the client’s cane processing facility in northern India for an on site discovery exercise. The visit was a structured field observation exercise. The team spent the visit observing farm manager workflows in real working conditions, reviewing how the paper cane calendar was actually used across the field hierarchy, examining the connectivity and device environment in which any mobile application would have to operate, and walking through the operational handoffs between farm managers, the cane team, regional supervisors, and the IT function. The travel and resource cost for the visit was absorbed inside the Discovery and Prototyping milestone.

The output of the visit was a working feature inventory that included every capability the client and the field hierarchy had requested across prior internal discussions, every workaround the team observed in operation, and every gap surfaced by farm managers when asked what would actually help them in a working day. The inventory ran to several dozen distinct features.

The team then ran a structured prioritization session against the inventory using a three bucket framework: must have features that defined the MVP and without which the platform would not deliver value in its first cane season, good to have features that would meaningfully improve workforce productivity once the MVP had stabilized, and wish to have features that would push the platform into new categories of capability beyond the original digitization brief. The must have bucket became the scope for Phase 1 of the build. Good to have became Phase 2. Wish to have became Phase 3. This single exercise converted an unbounded feature wishlist into a phased build sequence the client could authorize budget against.

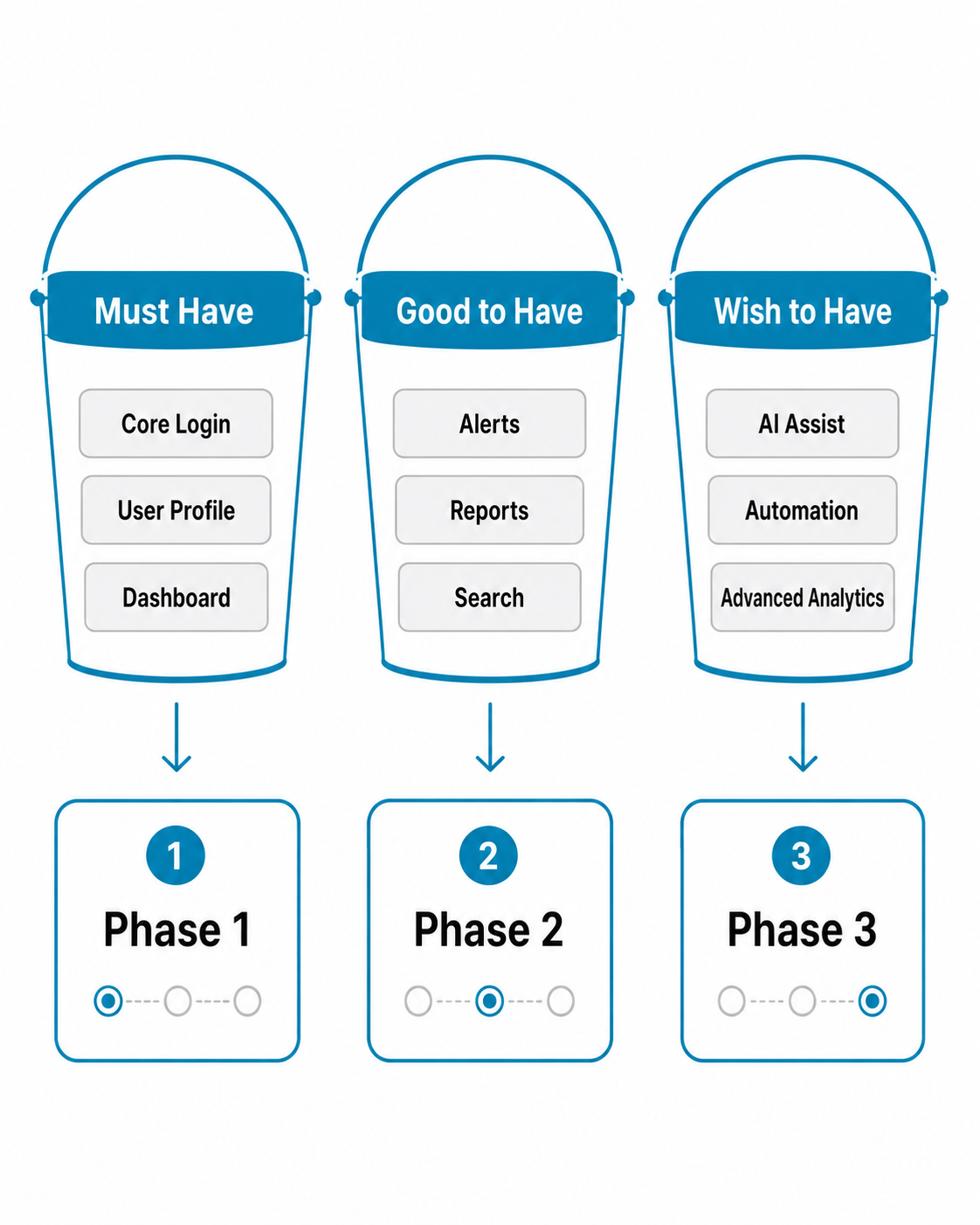

Fig 2 – Feature Prioritization Framework

Phase 2: Solution Architecture and Technology Selection

The technical architect prepared the full architecture artifact set: database model, system architecture diagrams, data flow diagrams, and entity relationship diagrams. Each artifact went through a formal review session with the client’s IT and operations leadership before being signed off as the basis for implementation.

Technology selection was treated as an explicit deliverable evaluated against documented alternatives in formal review sessions. Flutter was selected for mobile because the iOS supervisory application planned for the second year of the build could share a codebase with the Android farm manager application, reducing duplicate engineering investment across the platform’s life. Node.js with the MERN style stack was selected for the backend on the basis of team availability inside the client’s IT function for future maintenance, and the maturity of the ecosystem for the kind of REST API layer the application required.

PostgreSQL on AWS RDS was chosen over a document store after evaluating both. The cane calendar’s activity log has high relational integrity requirements: every entry links to a farm, a farmer, a growth stage, an activity type, and one or more product references, and the reporting layer requires reliable joins across these dimensions for regional and seasonal rollups. A document store would have offered flexibility the use case did not need at the cost of integrity it could not afford.

The deployment posture was the most consequential architectural call. The platform would run entirely inside the client’s own AWS account, with backend services on EC2, database on RDS, file storage on S3, transactional email through AWS SES, and zero data retention on Clixlogix infrastructure at any point. This satisfied the operational sensitivity requirements of a listed entity handling procurement, supplier, and yield data, and removed a multi year category of compliance risk from the client’s IT function.

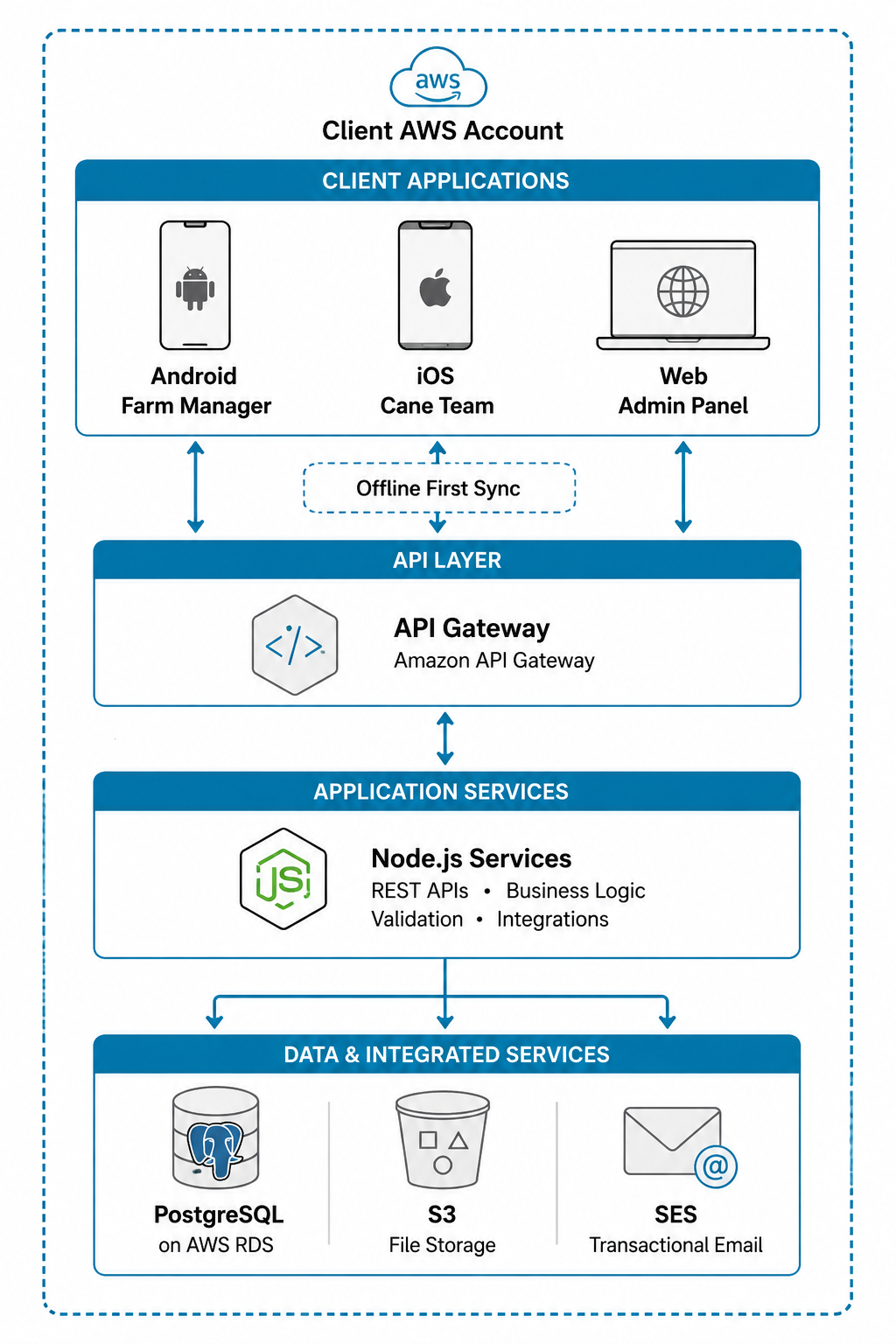

Fig 3 – Solution Architecture Diagram

Phase 3: Clickable Proof of Concept and Stakeholder Validation

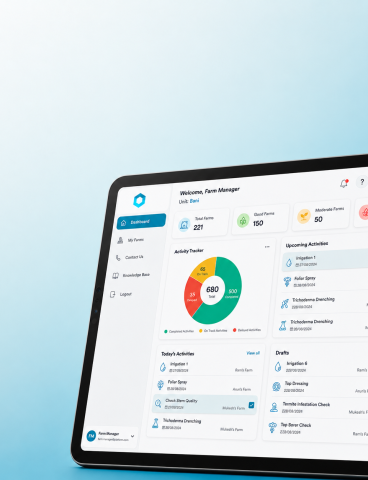

The proof of concept phase produced a high fidelity clickable prototype covering the four screens that would define farm manager adoption: dashboard, farm directory, activity tracker, and activity detail. The artifact was built to look and behave like the production application would, with realistic data populated against representative farm and farmer profiles.

The prototype became the validation instrument. Farm managers from a pilot region were walked through the workflow on a tablet, and their reactions, hesitations, and corrections fed directly into the wireframe revision cycle. The dashboard’s farm performance bucketing (good, moderate, poor) was a feature suggested in those sessions and added before the prototype was finalized. The drafts area for partial entries that need completion within 24 hours emerged from a field manager observation about how reporting actually happens during a working day.

The prototype and accompanying design system were delivered ahead of the cane season planning window so the client could authorize Phase 1 build investment with full visibility on the visual and interaction specification before that window closed. By the close of the phase, the prototype had been demonstrated to the client’s executive leadership, validated by representative end users, and signed off as the visual and interaction specification for the build phase. The prototype eliminated the most expensive failure mode of platform development: building the wrong thing and discovering it after production launch.

Phase 4: Phased Implementation Roadmap with Rolling Wave Estimation

The consulting engagement closed the technical work streams with a phased implementation roadmap that converted the validated specification into a buildable plan. Phase 1 of the build, scoped at twelve weeks of focused engineering, would deliver the digitized cane calendar with offline first sync on Android, the admin web panel for senior leadership, and the AWS infrastructure foundation.

The roadmap used a rolling wave estimation approach. Phase 1 was estimated in full at the close of consulting, with man day allocations against every resource line. Phase 2 and Phase 3 were defined at scope and capability level but not fully estimated until Phase 1 reached reasonable build progress. This approach gave the client a defensible cost and timeline for the work they were authorizing now while preserving the option to refine downstream estimates based on production learnings from the build team.

The roadmap also documented the risks the client should accept and the risks the build team should own, the dependencies on client side IT availability for AWS provisioning and acceptance testing, and the procurement and budget calendar against which the build phases should be authorized. The output was an artifact the client’s leadership could take to their board, defend with confidence, and use as the basis for releasing implementation budget.

Fig 4 – Cane Calendar Stages Flow

Phase 5: DevOps Lifecycle and Operational Handoff Consulting

The engagement extended into operational lifecycle design alongside the technical architecture. Clixlogix designed the deployment, build, and operational posture that the client’s internal IT team would own from day one of build commencement. The brief was explicit: design the DevOps lifecycle so production operation could sit entirely with the client’s team, without retaining the delivery partner in the production access perimeter after handoff.

The deliverable covered source control on GitHub Team with a repository structure per team member configured for the client’s internal team to own continuing development. A Jenkins CI/CD pipeline architecture issued build success and failure notifications to the responsible engineers, with each commit producing a tracked artifact through the pipeline. Sonarqube code coverage automation was integrated into the pipeline so quality reports flowed back into the Zoho Project tracking platform at the ticket level, giving the internal team visibility into code health on every commit. Zoho Project itself received automated updates from GitHub, Sonarqube, and Jenkins, so each work item carried a complete activity history from commit to coverage to build artifact without manual reporting overhead.

The deployment posture was designed on the client’s own AWS account, with EC2 compute, RDS PostgreSQL, S3 file storage, transactional email through AWS SES, an Elastic IP for stable inbound routing, domain registration, and SSL certificate provisioning architecture. A staging environment mirrored production for client demonstrations and acceptance testing before any release. Server monitoring and alert design specified automated alerts to designated team members when service health degraded, so incident detection ran independent of user reports.

Infrastructure cost projection was documented as a tentative monthly and annual server cost estimation against expected concurrent load, giving the client’s finance and IT functions a defensible figure for ongoing operational expenditure planning. The handoff design ensured the client’s internal team could operate production from day one without retaining Clixlogix in the production access perimeter, the deployment knowledge, or the operational runbook reference. Clixlogix retained zero production access posture as the operational complement to the zero data retention architecture designed in Phase 2.

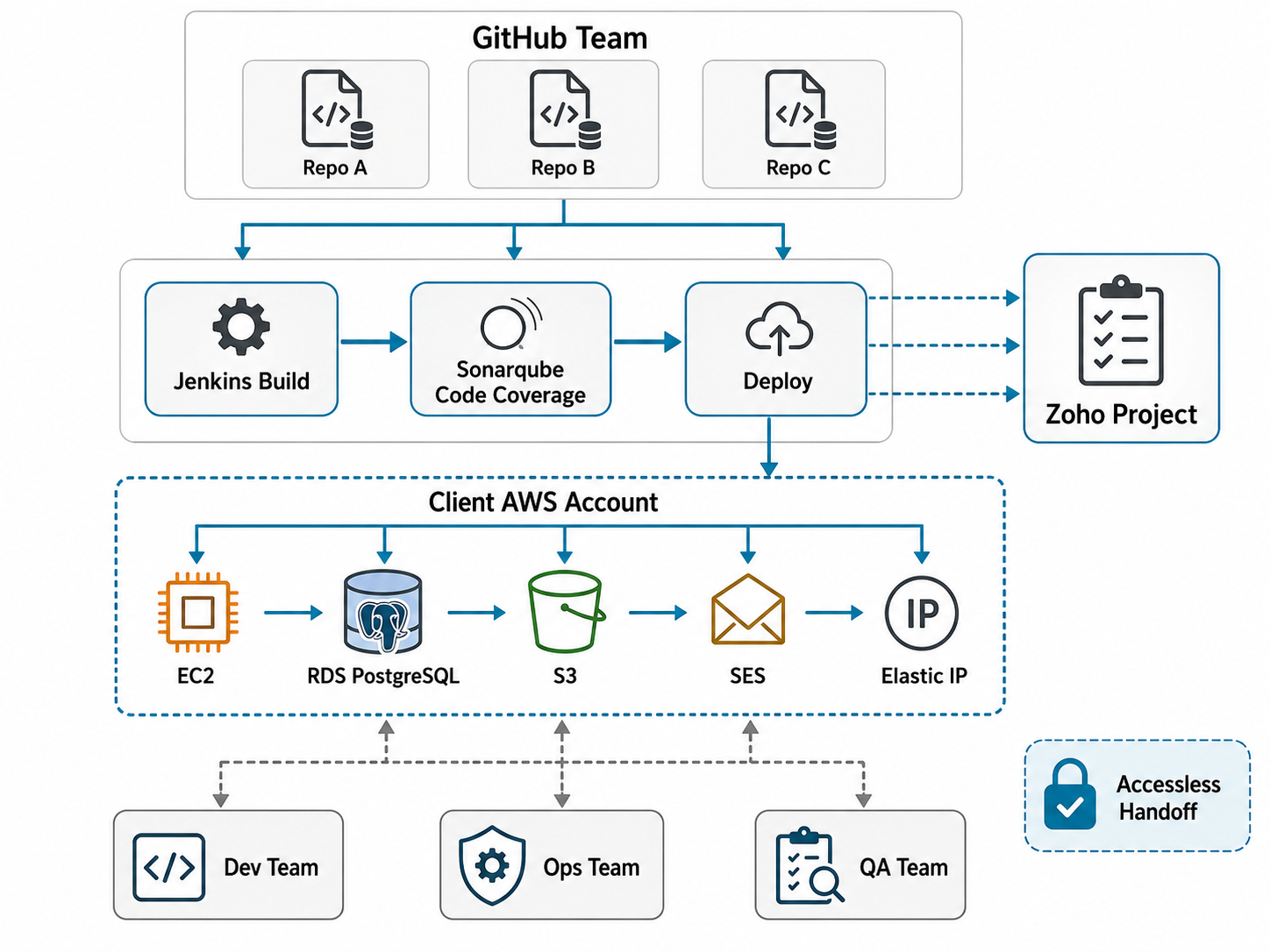

Fig 5 – DevOps Lifecycle Architecture

Phase 6: IT Support Plan and SLA Framework Consulting

The consulting engagement closed with the design of a complete IT support framework the client’s IT function would operate to govern post deployment support across the platform’s multi year life. The deliverable was the support architecture itself: priority tier design, response and resolution matrix structure, monitoring and reporting cadence, escalation paths, communication protocol, roles and responsibilities, financial model structure, and review and amendment cycle.

The framework anchored on a four tier priority taxonomy with formal criteria for each tier. Critical issues are defined as complete halt of business operations with no workaround available. High Priority issues are partial halt with no procedural workaround and important features unavailable. Medium Priority issues cover partial non critical loss of use with short term workaround available. Low Priority issues cover routine inquiries and bugs affecting small user populations with acceptable workarounds. Each tier carries explicit business impact criteria that the client’s IT function can reference when triaging incoming tickets. A response and resolution time matrix tiered against these priorities defines how quickly the support team acknowledges receipt and resolves each tier of issue, with each window deliberately calibrated to business impact rather than operational convenience.

Two service modes were designed to operate in parallel. Corrective support runs continuously throughout the support period for bug resolution and uptime maintenance against documented crash rate thresholds and platform specific corrective trigger levels. Adaptive support runs on a biannual upgrade cycle for library and framework refresh, technology stack maintenance, and documentation updates reflecting changes made over the prior six months. The monitoring architecture specifies APM telemetry across the API and admin panel layer and dedicated mobile APM telemetry across both Android and iOS, with monthly comprehensive performance reporting, quarterly review sessions, and ad hoc reports for critical incidents.

The framework also defined the escalation path from Project Manager intake and triage, to Development team first resolution, to Tech Lead escalation for unresolved tickets, to Technical Architect handling architectural escalation on backend issues. The communication protocol architecture established a primary ticket management platform for the support workflow with an integrated secondary support channel for the customer, automatically synchronized across both surfaces. The roles and responsibilities matrix split Service Provider and Customer obligations with named points of contact and daily and weekly cadences specified by role. A service credit model converted excess downtime hours into contract duration extensions, creating financial accountability for the service provider while preserving operational continuity for the customer. The review cycle ran every six or twelve months, with a formal amendment workflow requiring documentation, mutual agreement, and a reset of the penalty structure on each amendment. The output was a complete IT support framework document the client’s IT function could operationalize from day one of post deployment support.

Fig 6 – IT Support Framework Architecture

Consulting Decisions

On site grounded prioritization. The feature inventory was built from direct observation of farm manager workflows at the cane processing facility. The Must Have bucket reflects the operational needs surfaced through direct observation of farm manager workflows in working conditions. This shaped Phase 1 scope and removed the most common cause of post launch rework.

Cross platform mobile via Flutter. The choice carried a measurable economic argument. The iOS Cane Team application planned for the second year would share a codebase with the Android farm manager application, reducing duplicate engineering investment across the platform’s life. Native development on both platforms would have required parallel teams and divergent maintenance paths over a decade of operations.

Relational over document store. PostgreSQL was selected after evaluating a document store alternative. The cane calendar’s activity log requires reliable joins across farm, farmer, growth stage, activity, and product dimensions for regional and seasonal reporting. A document store would have offered schema flexibility the use case did not need at the cost of relational integrity it could not afford.

Client hosted AWS deployment. The platform runs entirely inside the client’s own AWS account with zero retention on Clixlogix infrastructure. For a listed entity handling procurement, supplier, and yield data, this removed a multi year category of compliance risk and aligned the platform with the client’s existing cloud governance posture.

Offline first architecture. Field connectivity in cane growing belts is intermittent. Every activity submission writes to the local store first and synchronizes when connectivity returns, with conflict resolution favoring the most recent field entry. This architectural call ensured the platform would be usable in the field connectivity conditions where farm managers operate daily.

Rolling wave estimation. Phase 1 was estimated in full at consulting close. Phase 2 and Phase 3 were defined at scope but not fully estimated until Phase 1 reached reasonable build progress. This gave the client a defensible cost for the work they were authorizing now while preserving the right to refine downstream estimates based on production learnings from the build team.

Accessless operational handoff. The DevOps lifecycle was designed so the client’s internal team could own production operation without retaining Clixlogix in the access perimeter. Source control, build automation, code quality reporting, project tracking integration, monitoring, and deployment architecture were all configured to be operated by the internal team using their existing tooling stack. Clixlogix retained zero production access as the operational complement to the zero data retention architecture.

Framework before numbers in support design. The IT support deliverable was the architecture of the support framework rather than the specific thresholds in isolation. The four tier priority taxonomy, the response and resolution matrix structure, the corrective and adaptive service split, the escalation path design, the communication protocol architecture, and the review and amendment process were all designed as a framework the client could operationalize and recalibrate over time. Specific thresholds were defined inside the framework, but the framework itself was the durable artifact.

Results

Measured against the engagement’s advisory objectives:

2.5 Months End to End Consulting Engagement

Six parallel work streams covering discovery, architecture, technology selection, proof of concept, phased roadmap, DevOps lifecycle, and IT support framework, delivered across the cane season planning window.

Field Grounded 3 Bucket Prioritization Framework

Several dozen candidate features from on site observation sorted into must have, good to have, and wish to have buckets, converting an unbounded feature wishlist directly into a phased build sequence the client could authorize budget against.

3 Phase Build Sequence with Rolling Wave Estimates

Phased build plan with scope, timeline, cost envelope, and risk profile per phase, signed off by client IT and senior leadership. Phase 1 fully estimated at consulting close; Phase 2 and 3 estimated using a rolling wave approach as Phase 1 progressed.

4 Architecture Artifacts Reviewed and Signed Off

Database model, system architecture diagram, data flow diagrams, and entity relationship diagrams produced, reviewed in formal sessions with client IT and operations leadership, and accepted as the implementation specification.

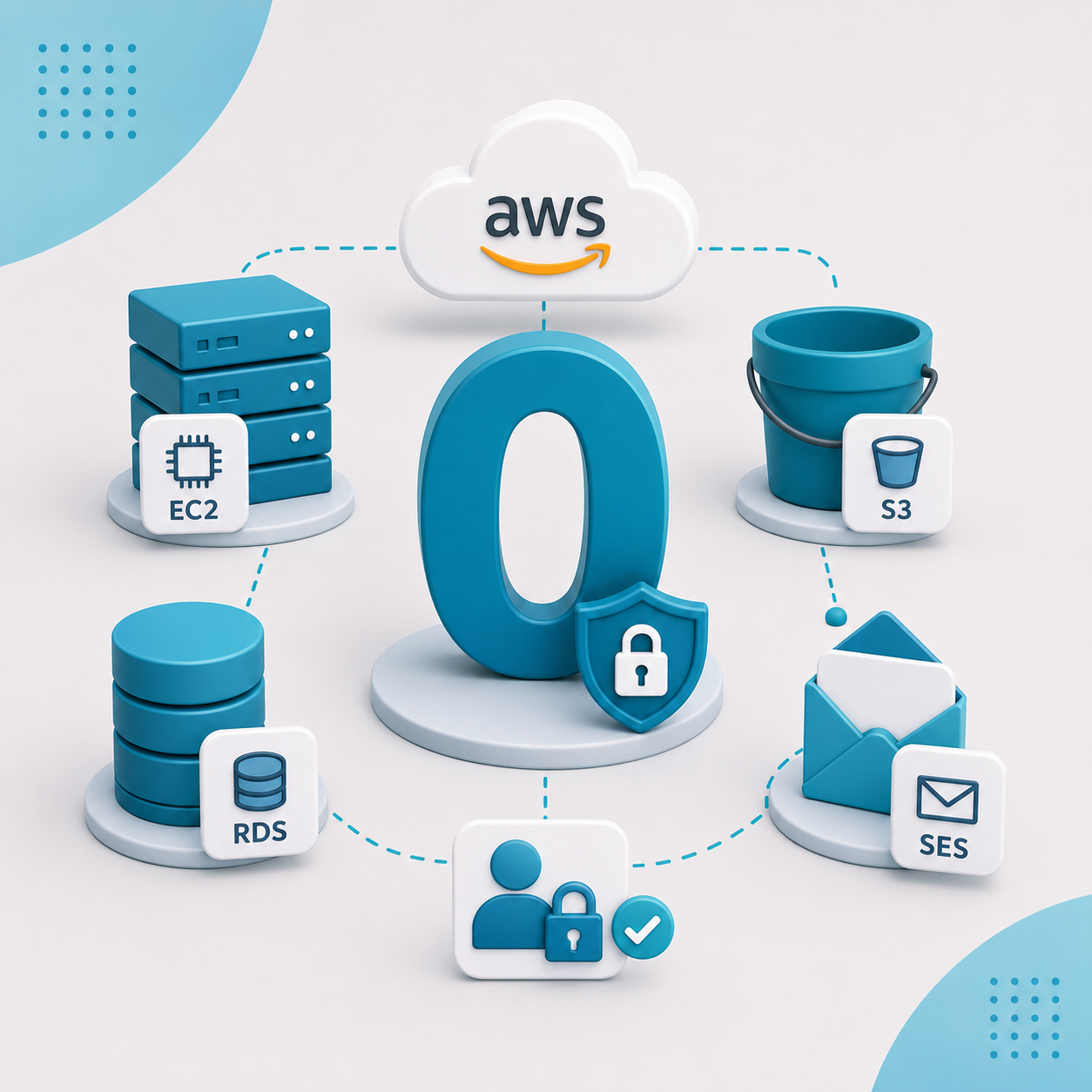

Zero Retention Deployment Inside Client AWS Account

Platform architecture committed to running entirely inside the client's AWS account on EC2, RDS, S3, and SES, with no data stored or processed on delivery partner infrastructure at any point, removing a compliance risk category for a listed entity.

4 Tier Priority Support Plan with Defined Resolution Matrix

A four tier priority taxonomy (Critical, High, Medium, Low) with business impact criteria and a tiered response and resolution matrix. Escalation paths, a service credit model, and a formal review cycle complete the framework.

98% Uptime SLA with 4 Hour Critical Response

A performance standard framework defining uptime targets and platform specific crash rate thresholds. Critical issues acknowledge within 4 hours and resolve within 24 hours, with each priority tier calibrated to its business impact.

The consulting engagement delivered a board defensible blueprint that the client’s leadership used to authorize multi year implementation budget with full visibility on scope, cost, risk, operations, and support governance.

Technologies and Tools

Platform Selected: Android (primary), iOS (planned for year two), Web (admin panel)

Architecture Selected: Offline first sync, REST API layer, role based access control

Mobile Stack Selected: Flutter (cross platform from a single codebase)

Frontend Stack Selected: React (admin web panel)

Backend Stack Selected: Node.js (MERN style)

Database Selected: PostgreSQL on AWS RDS

Cloud Posture Selected: Amazon Web Services, deployed inside the client’s AWS account with zero data retention on delivery partner infrastructure

Design Tools: Figma (wireframes, high fidelity prototype, design system)

Architecture Deliverables: Database model, system architecture diagram, data flow diagrams, entity relationship diagrams, technology selection rationale, phased implementation roadmap

DevOps Lifecycle Specified: GitHub Team source control, Jenkins CI/CD pipeline with build success and failure notifications, Sonarqube code coverage automation, Zoho Project integration for ticket level activity history across commits, coverage reports, and build artifacts, staging environment mirroring production, server monitoring with automated alerts, infrastructure cost projection, accessless handoff posture

IT Support Framework Specified: Four tier priority taxonomy with business impact criteria, response and resolution matrix calibrated by tier, corrective and adaptive service split, APM monitoring stack architecture, four level escalation path, dual channel communication protocol, roles and responsibilities matrix, service credit model, formal review and amendment cycle

Ongoing Engagement

The consulting engagement remains the architectural and operational foundation against which the client’s implementation continues to execute. Scope, technology stack, deployment posture, DevOps lifecycle, and support governance are all anchored to the consulting outputs.

Services Delivered

Consulting Service, Tech Stack Recommendation, Mobile App Consultation, Maintenance & Support, Digital Engineering

Team Composition

Solution Architect, Business Analyst, UX Designer, UI Designer, Project Manager, DevOps Architect
